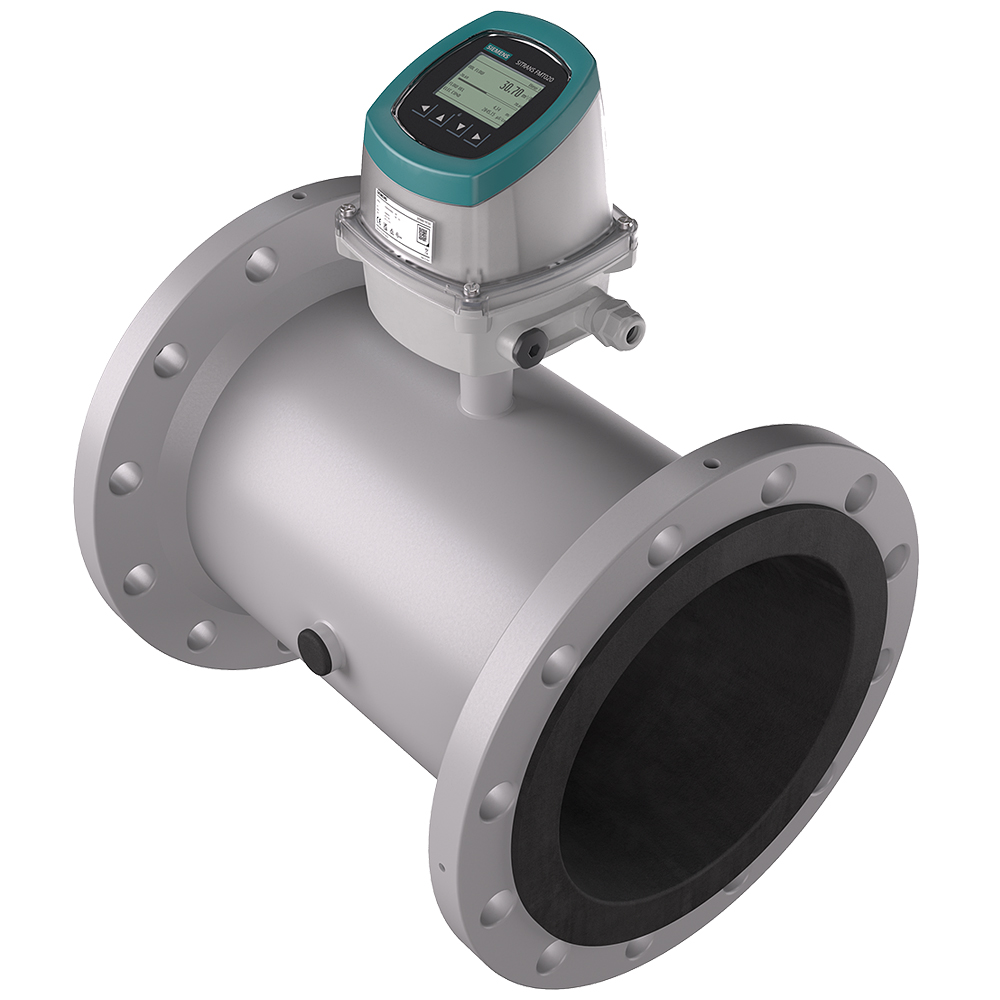

The SITRANS FMS500 sensor with hard rubber NBR and EPDM liners is designed for any water application.
Benefits
- Zero Up and Zero Down installation capabilities
- EPDM lining specifically for drinking water applications requiring special approvals
- NBR rubber liner for all water and wastewater applications
- Increased low flow accuracy for water leak detection
- Suitable for underground installation and permanent immersion (IP68) or underwater installation
- Integrated grounding electrodes – no grounding rings required for many applications
- Short delivery time
-
Connected to the SITRANS FMT020 transmitter it forms the magnetic flowmeter system SITRANS FM520:
- SENSORPROMTM Technology provides an automatic upload of start-up settings and calibration data for easy commissioning
- Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just a few minutes
- Mounting flexibility – compact or remote installation possible
- Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
- Service and diagnostics – Designed to allow in-situ verification for easy performance check
Technical Overview
| Measuring Range | 0 to 10 m/s |
| Nominal Sizes | From DN 15 to DN 1200 (1/2" to 48") |
| Accuracy | 0.4 % of rate, option 0.2 % of rate |
| Operating Pressure | Max. 40 bar (Max. 1580 psi) ( dependent on sensor size) |
| Ambient Temperature | From -20 to 70 oC (-4 to 158 oF) |
| Medium Temperature | From -10 to 70 oC (14 to 158 oF) |
| Liners |
|
| Electrodes |
|
| Material | Carbon steel with corrosion resistant two component epoxy coating |
| Drinking Water Approvals |
|
| Application | Water Abstraction, Water distribution Netwok and Wastewater |
Catalog :
SITRANS FMS500
