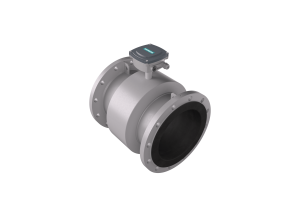

SITRANS FMS300 is an electromagnetic flow sensor with a large variety of liners, electrode materials and with grounding electrodes as standard, all this ensures a perfect fit for almost every flow application.
Benefits
- Fully welded construction that is extremely rugged and can withstand special process conditions using wide variety of measurement electrodes.
- Versatile use – lining and electrodes available for every application.
- High temperature version available up to 180 °C/ 356 °F.
- SITRANS FM portfolio is an integrated platform enabling flexible use of the new FMT020 transmitter for all new sensors like FMS500 and FMS300, along with the MAG 5000/ 6000 transmitters for other products such as MAG 5100 W/ 3100/ 1100.
- Unique SENSORPROM technology stores critical, sensor-specific data and transfers it to the transmitter, enabling easy and flexible sensor commissioning.
- Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes.
- Modular design that allows future upgrades.
- Flexible mounting options – compact or separate installation possible.
- Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
- Service and diagnostics – designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS Verificator ensures accuracy in the field.
Technical Overview
| Measuring Range | 0 to 10 m/s |
| Nominal Sizes | From DN 15 to DN 2000 (1/2" to 78") |
| Accuracy | 0.4 % of rate, option 0.2 % of rate |
| Operating Pressure | Max. 100 bar (Max. 1450 psi) dependent on sensor size) |
| Ambient Temperature | From -40 to 100 oC (-40 to 212 oF) |
| Medium Temperature | From -10 to 180 oC (14 to 356 oF) |
| Liners |
|
| Electrodes |
|
| Material | Carbon steel (or AISI 304) with corrosion resistant two component epoxy coating or AISI 316 L polished flanges and housing |
| Drinking Water Approvals |
|
| Custody Transfer Approvals |
|
| General Approvals | Drinking Water approvals, e.g. WRAS, NSF/ANSI Standard 61, DVGW 270, AS/NZS 4020, GB/T 5750, ACS and Belgaqua |
| Application | Process Industry, Chemical Industry, Steel Industry. |
Catalog :
SITRANS FMS300
