SITRANS FMT020

Posted on by
Main Product >> Process instruments >> Flow Measruement >> Electromagnetic >> Transmitter

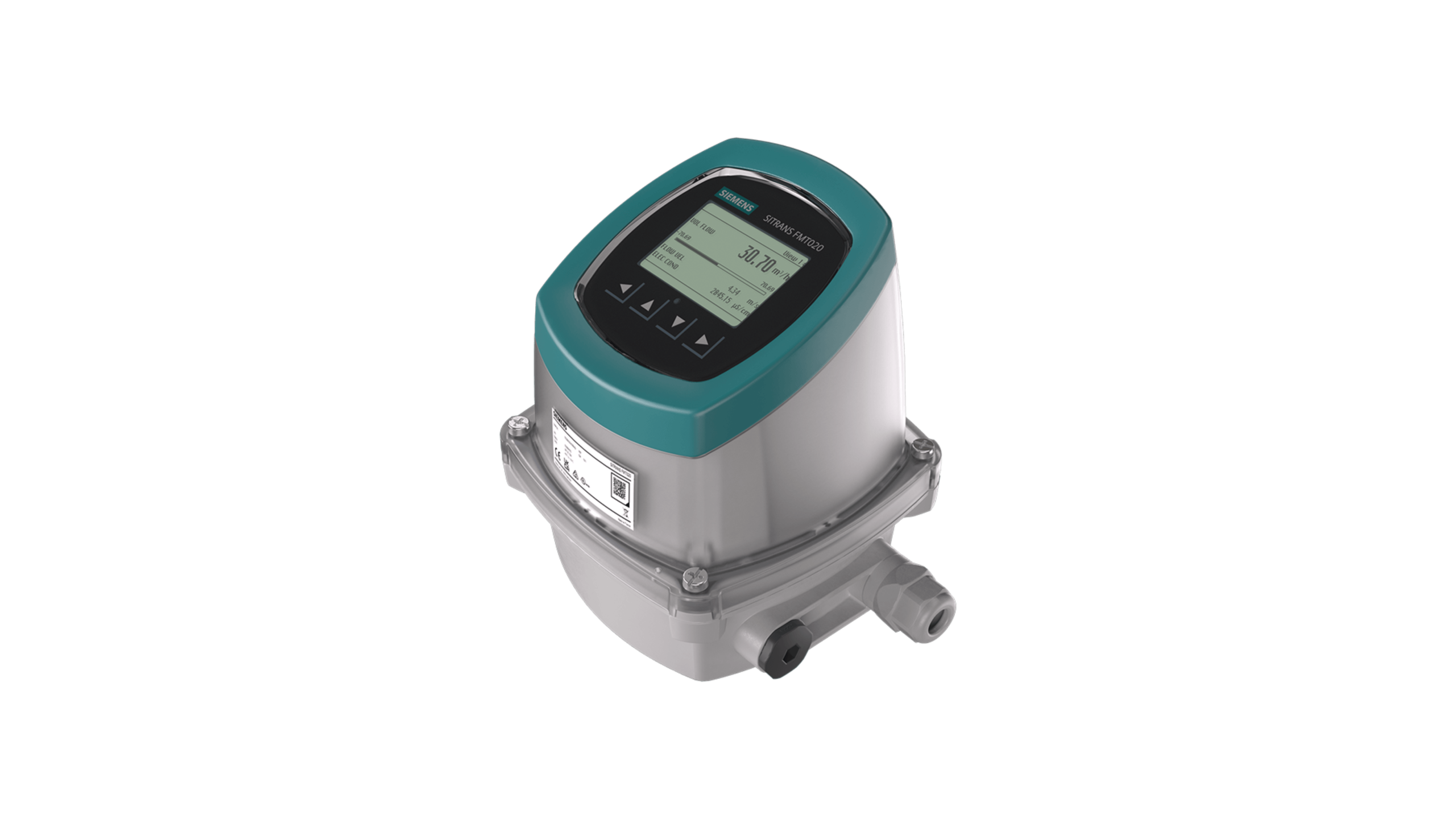

SITRANS FMT020The new SITRANS FMT020 transmitter is a high performance, robust, intelligent product, designed for a wide range of applications requiring highly accurate and reliable flow measurement of conductive fluids.

Benefits

  • Simultaneously measure volumetric flow, flow velocity and electrical conductivity
  • Cost-effective solution, backward compatible with older existing flowmeter sensors (MAG 5100W, MAG 3100, MAG 3100 P, MAG 3100 HT)
  • Equipped with a large, rotatable, backlit 14-digit graphical display for optimal visibility in all mounting positions
  • Easy programming and commissioning with menu and wizard in 14 languages
  • Compact or remote mounting possible with the same housing.
  • Enhanced diagnostics like empty-pipe monitoring and device self-check
  • Plug & Play modules allow easy on-site replacement and commissioning of the transmitter in just minutes
  • Multi-functional input/output channels for process control
  • Certification for a wide range of communication protocols and industry standards

Detail

Measurement of

 Volume flow
Flow velocity
Electrical conductivity
Input / output

 1 current output
1 digital output
1 relay output
Communication

 HART
PROFINET
EtherNet/IP
MODBUS RTU
Profibus
Bluetooth
Display

 Graphical 60x40mm, 14-digit
Enclosure

 Polycarbonate
IP66/67, NEMA 4X/6P
Power supply

 AC Version: 100 to 240 V AC, 50 to 60 Hz, 25 VA
DC Version: 24 V DC ±20 %
Ambient temperature

 -40 to +65 °C (-40 to +149 °F)
Approvals

 CE (LVD, EMC, RoHS), UKCA
UL, CSA certified per standard EN / IEC 61010-1

Application examples: water and wastewater, general process industry
