SITRANS FM MAG 5100 W

Posted on by
Home >> Process Instrument >> Flow Measurement >> Electromagnetict >> Sensor

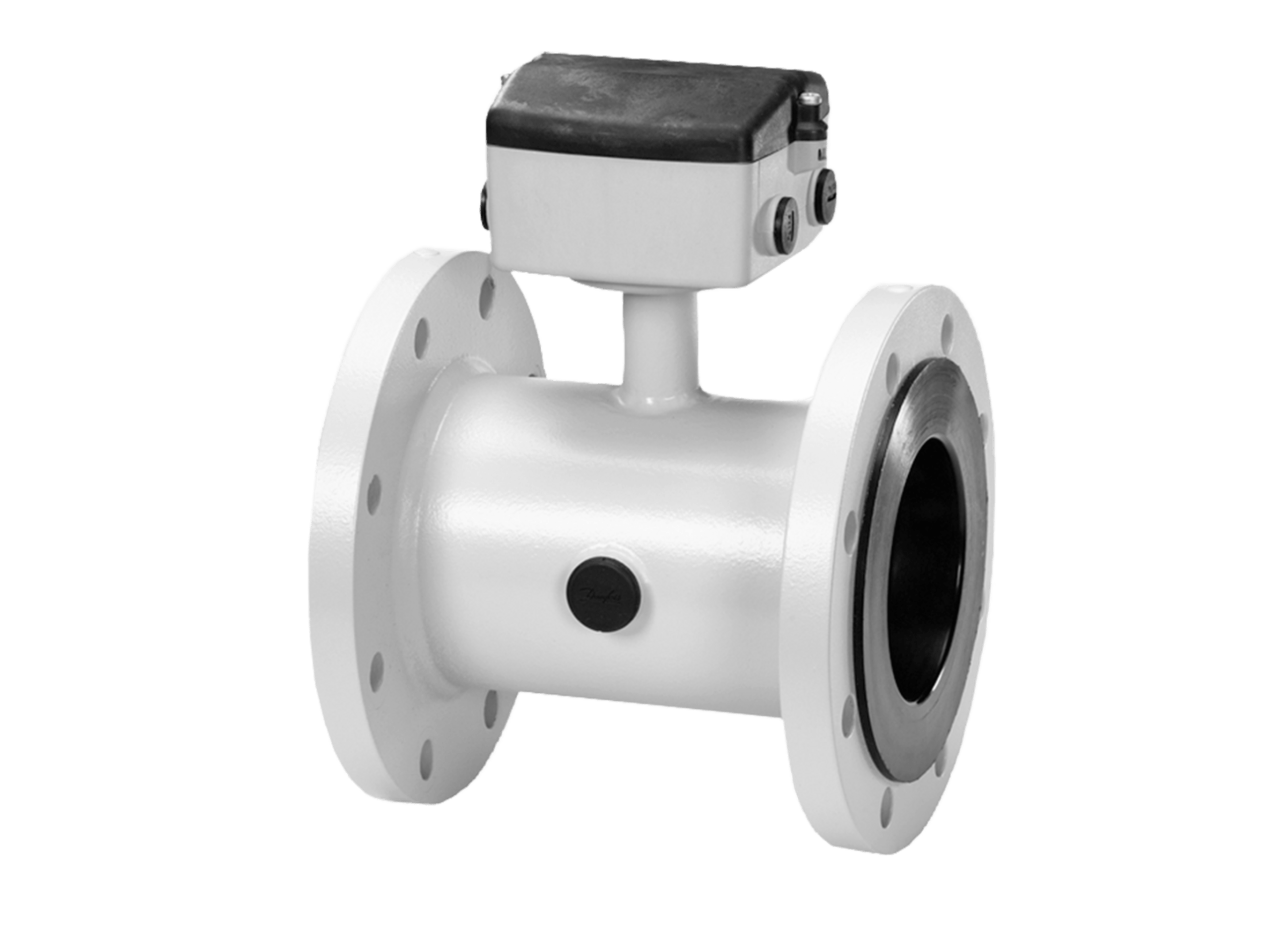

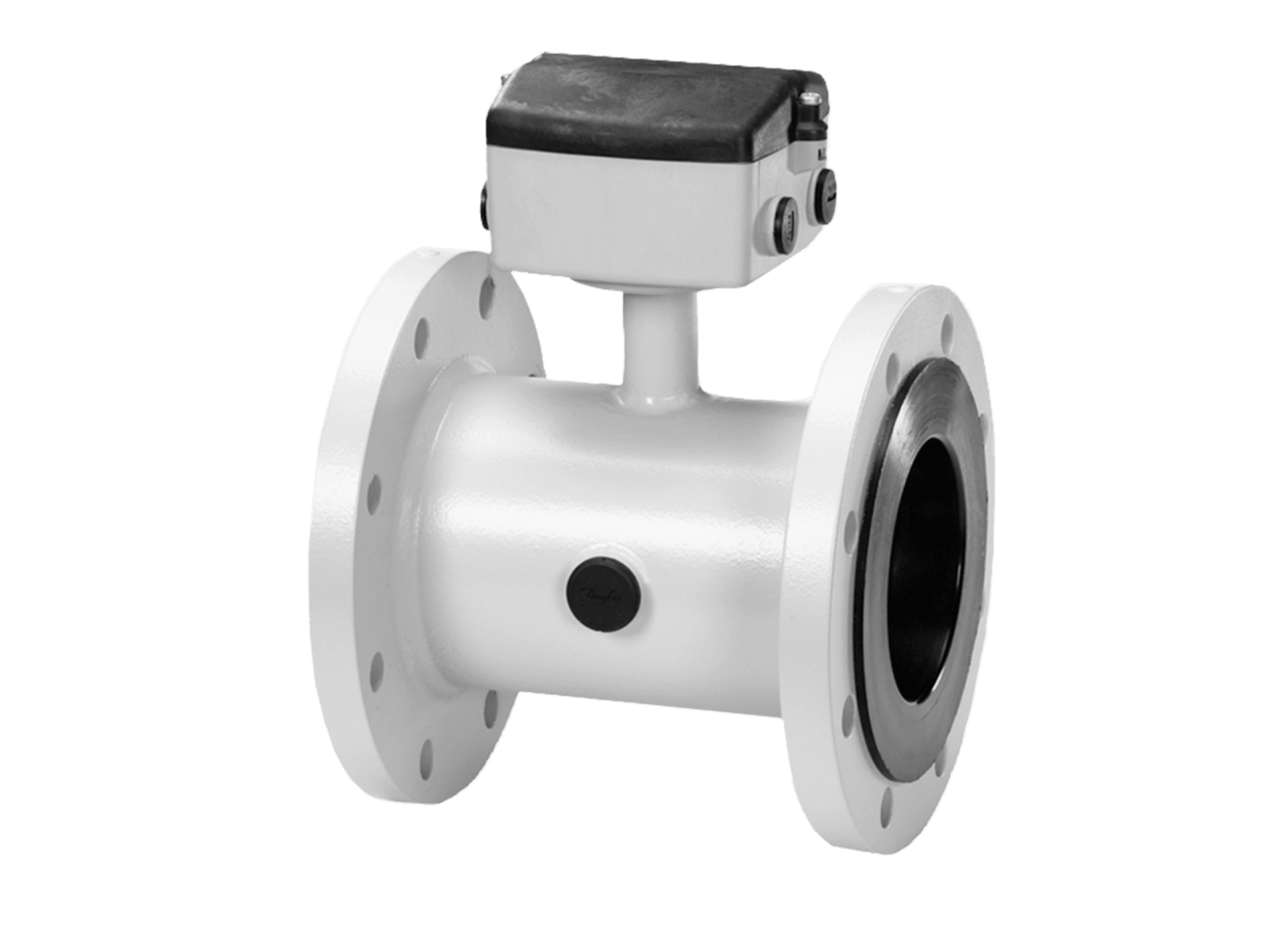

     The SITRANS FM MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications.

Benefits

  • Zero Up and Zero Down installation capabilities
  • Lining specifically for drinking water applications requiring special approvals
  • Increased low flow accuracy for water leak detection (NBR or EPDM lining)
  • Suitable for underground installation and permanent immersion (IP68) or underwater installation
  • Integrated grounding electrodes – no grounding rings required for many applications
  • Short delivery time
  • SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG 5100 /3100/ 1100):
    • Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
    • Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
    • “Hot swapable” – exchangeable during operation
    • Mounting flexibility – compact or separate installation possible
    • Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
    • Service and diagnostics – Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.

Technical Overview

Measuring Range 0 to 10 m/s
Nominal Sizes From DN 15 to DN 2000 (1/2" to 78")
Accuracy 0.2 % ±1 mm/s
Operating Pressure Max. 16 bar (Max. 150 psi)
Ambient Temperature From -40 to 70 oC (-40 to 158 oF)
Medium Temperature From -10 to 70 oC (14 to 158 oF)
Liners
    EPDM
    NBR
Electrodes
    Built-in grounding electrodes
    Hastelloy C276
    Built-in grounding electrodes
Material Carbon steel with corrosion resistant two component epoxy coating
Drinking Water Approvals
    EPDM : WRAS, NSF/ANSI Standard 61, DVGW 270, ACS and BelgAqua
    NBR : NSF/ANSI Standard 61, WRAS
    Ebonite : WRAS
Custody Transfer Approvals
    OIML R 49
    MI-001
    PTB K7.2 (Germany)
    BEV OE12/C040 (Austria)
General Approvals MCERTS Sira Certificate No. MC080136/09
Application Water Abstraction, Water Distribution Network, Waste Water and as Custody Transfer Water Meter or Cooling Meter.

Catalog :

SITRANS FM MAG 5100 W
