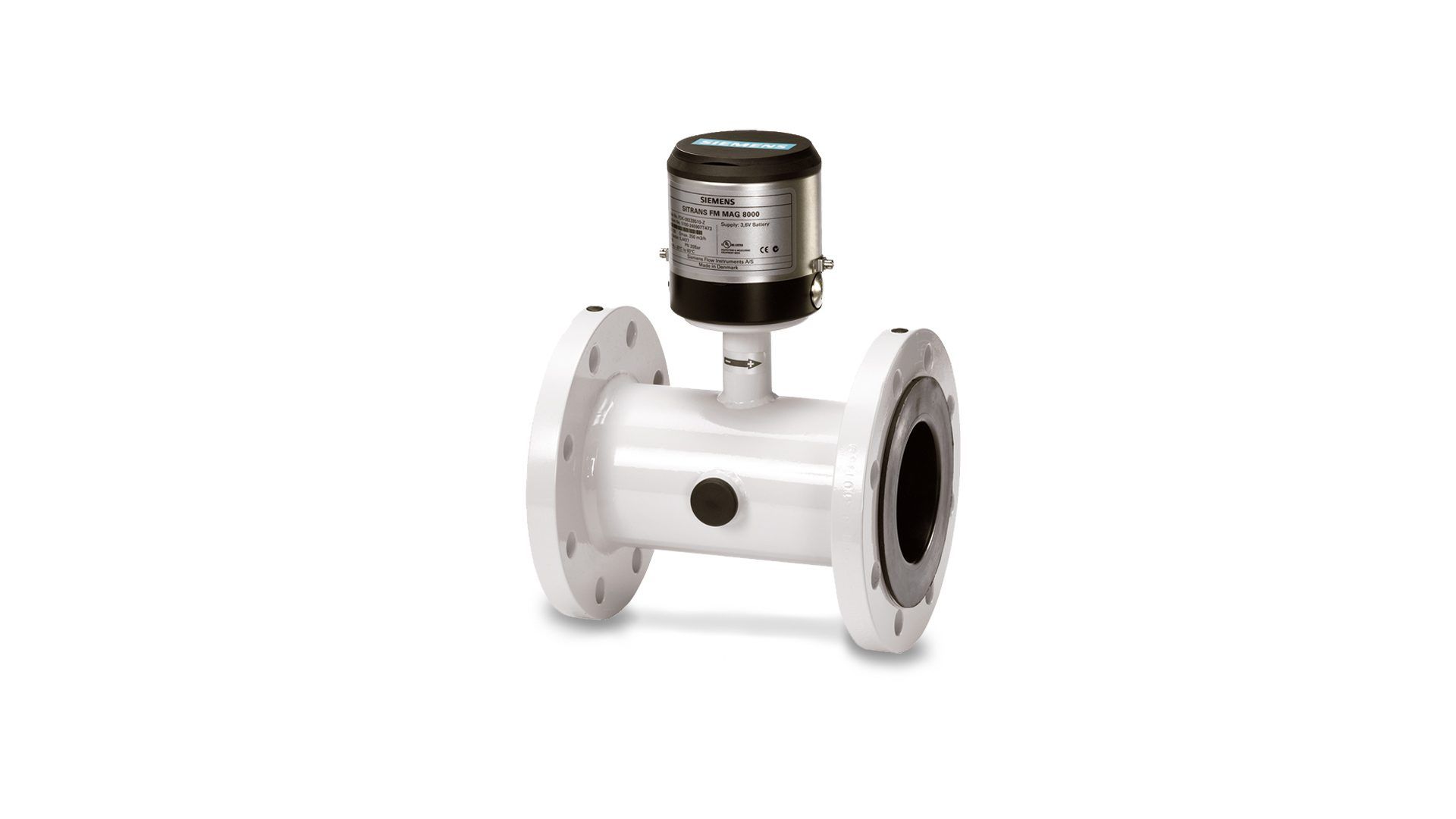

SITRANS FM MAG 8000

Posted on by
Home >> Process Instrument >> Flow Measurement >> Electromagnetic >> Industry Specific Flow System

     The SITRANS FM MAG 8000 portfolio of battery-operated flowmeters gives you the flexibility to install a reliable water flowmeter virtually anywhere without sacrificing accuracy or performance.

     The SITRANS FM MAG 8000 portfolio features a basic version for general water applications or an advanced version for additional functionality, network, and consumption performance (profiling). An optional built-in IIoT Wireless Communication Module is available for remote reading of comprehensive measurement data covered by a LTE-M or NB-IoT. Measurement data, configuration, and the built-in verification from the MAG 8000 are made accessible via the new Web Application.

Technical Overview

Nominal Sizes
    From DN 25 to DN 1200 (1" to 48")
    From DN 50 to DN 600 (1" to 24") for CT version under the MI-001 and OIML R49 Class I & II
Accuracy 0.2% ± 2mm/s and 0.4% ± 2mm/s
Input / Output 2 Passive Output
Communication Local Modbus RTU IrDA (Infrared comm.), Modbus RS 232/485, Radio Encoder (Sensus Protocol), 4G LTE M/NB IoT
Power Supply
    Internal or External Battery Pack
    12-24 V AC/DC and 115 - 230 V AC
Operating Pressure Max. 40 bar (Max. 580 psi)
Ambient Pressure From -20 to 60 °C (-4 to 140 °F)
Medium Pressure
    From 0 to 70 °C (32 to 158 °F)
    From 0.1 to 50 °C (32 to 122 °F) (SITRANS F M MAG 8000 CT)
Liners EPDM
Electrodes Hastelloy C 276
Enclosure Sensor IP68 (NEMA 6)
Material
    Transmitter : Stainless Steel Top Housing (AISI 316) and Coated Brass Bottom.
    Sensor : Carbon Steel
Approvals WRAS, KTW, DVGW 270, ACS, Belgaqua, NSF/ANSI Standard 61, MID (EU), OIML R49, MCERTS Sira Certificate No. MC080137/00, NMI 10
Application General water applications

Catalog :

SITRANS FM MAG 8000
