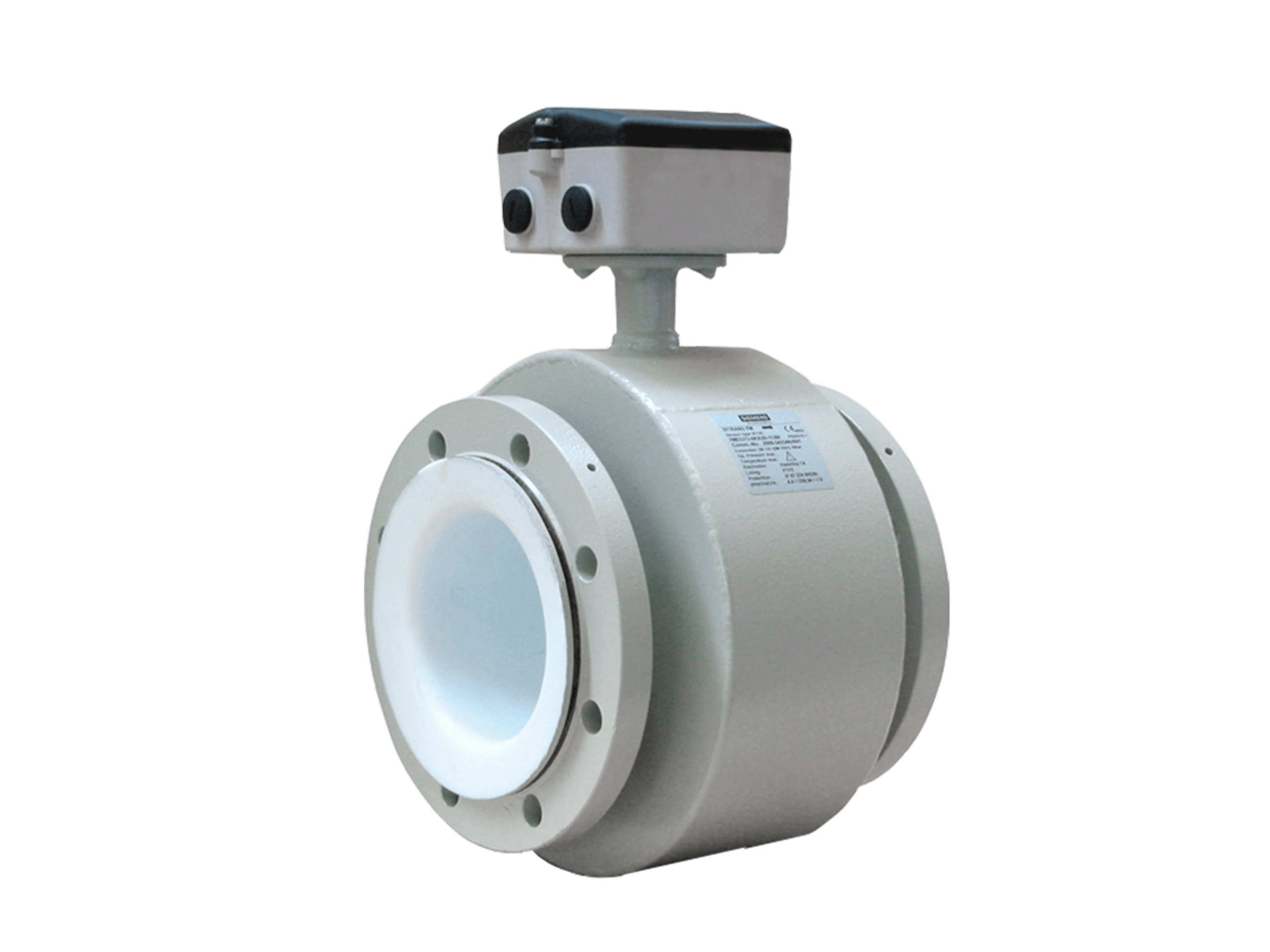

SITRANS FM TRANSMAG 2 with Sensor SITRANS FM TRANSMAG 911/E - Siementechno Drive

Main Product >> Process instruments >> Flow Measruement >> Electromagnetic >> Industry Specific Flow System

The SITRANS FM TRANSMAG 2 transmitter with the sensor SITRANS FM TRANSMAG 911/E is a high-powered magnetic flowmeter where the magnetic field strength is much higher than conventional magnetic flowmeters.

Benefits

Sensor design – provides a sturdy construction with robust and reliable design and optional IP68 sensor protection
Stable zero point – ensuring accurate, repeatable, fast-responding and stable flow signal
SmartPLUG concept – true Plug & Play with automatic sensor recognition
Pulsed alternating field – provides excellent signal strength and zero point stability
Liners – broad variety available to fit every application
Electrodes – wide range of materials available

Detail

Meassuring range	0 to 10 m/s
Nominal Sizes	From DN 15 to DN 1000 (½” to 40″)
Accuracy	± 0.5 % of flow rate
Operating pressure	Max. 40 bar (Max. 580 psi)
Ambient temperature	From -20 to 60 °C (-4 to 140 °F)
Medium temperature	From -20 to 150 °C (-4 to 300 °F)
Liners	Neoprene PTFE Hardrubber Linatex Novolak
Electrodes	AISI 316 Ti (mat. No. 1.4571/316 Ti) Hastelloy C4 (mat. No. 2.4610) Platinum head with shaft (mat. No. 1.4571/316Ti) Titanium Tantalum
Enclosure sensor	IP67 (NEMA 4x) IP68 (NEMA 6) – optional
Material	Carbon steel

Application Examples: ideal for difficult applications such as: high concentrated paper stock > 3 %, heavy mining slurries, mining slurries with magnetic particles
