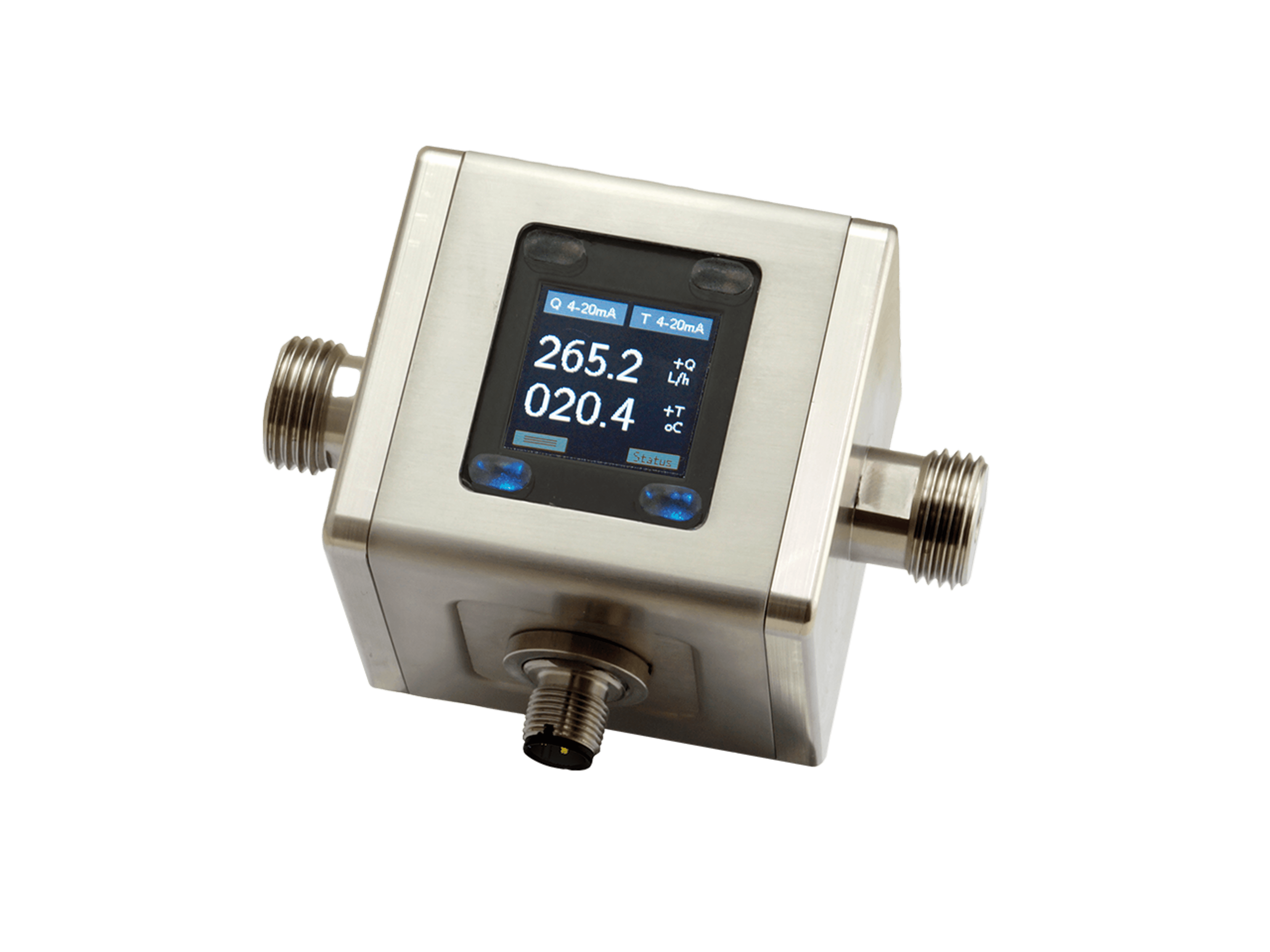

     The SITRANS FM100 is an electromagnetic flow meter for measuring and monitoring small and medium flows.

Benefits

  • Robust stainless-steel design
  • Multiple measurements (flow and temperature) in one device
  • Dosing function with external control input
  • Easy local operation via 4 optical buttons, works with gloves
  • Individual orientation of display according to application
  • Bidirectional measurement
  • Flexible usage in different applications due to two individual configurable outputs
  • Total and partial volume counters to track flow rates

Technical Overview

Measuring Range Flow Range 0.03 to 350 l/min
Nominal Sizes 1/2", 3/4", 1", 2"
Accuracy ± 0.8 % of reading + 0.5 % of full scale
Operating Pressure Max. 16 bar
Process Temperature
    From -20 to 70 °C (Compact)
    From -20 to 140 °C (Remote)
Housing Material Stainless Steel 1.4404
Electrode Material Stainless Steel 1.4404
Connection Fitting Stainless Steel 1.4404
Insulation Parts PEEK
SEALS FKM (Optional : EPDM)
Display
    Operation via 4 optical touch sensors (operation with hand gloves)
    TFT display, 128×128 pixels, 1.4” display, orientation in 90° steps adjustable, repetition rate adjustable 0.5 … 10s
Protection Class IP67
Communication I/O Link
Output 2 Output (Analog, Pulse, Frequency or Alarm)
Input Control Input (Optional with dosing function)
Application Suitable for OEMs, for example for cooling water circuits or filling systems

Catalog :

SITRANS FM100
