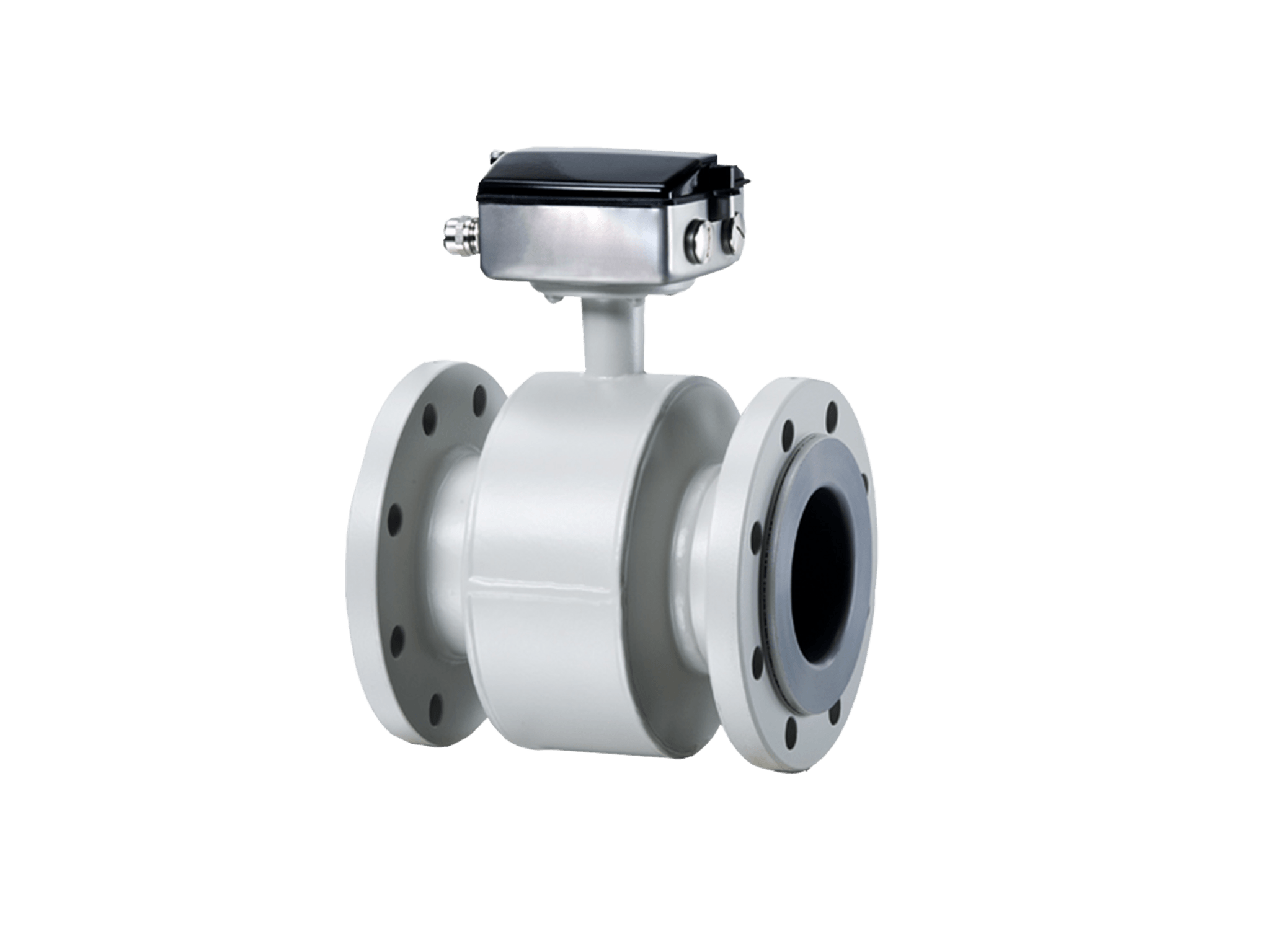

The SITRANS FM MAG 3100 P sensor is designed to meet the most common specifications within the chemical and process industries.
Benefits
- Fully welded construction that is extremely rugged and can withstand special process conditions using extreme measurement electrodes
- Integrated grounding electrodes – no grounding rings required for many applications
- Short delivery time due to standardized warehousing
- Temperature resistant up to 302 °F
- Approved for use in potentially explosive atmospheres
-
SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG 5100 /3100/ 1100):
- Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
- Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
- “Hot swapable” – exchangeable during operation
- Mounting flexibility – compact or separate installation possible
- Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
- Service and diagnostics – Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
Technical Overview
| Measuring Range | 0 to 10 m/s |
| Nominal Sizes | From DN 15 to DN 300 (1/2" to 12") |
| Accuracy | 0.2 % ±1 mm/s |
| Operating Pressure | Max. 40 bar (Max. 1450 psi) |
| Ambient Temperature | From -40 to 100 oC (-40 to 212 oF) |
| Medium Temperature | From -20 to 130/150 oC (-40 to 266/302 oF) |
| Liners |
|
| Electrodes |
|
| Material | Carbon steel with corrosion resistant two component epoxy coating |
| Approvals | ATEX-2 GD Zone, FM / CSA Class 1 div 2 |
| Application | Process Industry, Chemical Industry, Pulp & Paper Industry |
Catalog :
SITRANS FM MAG 3100 P
