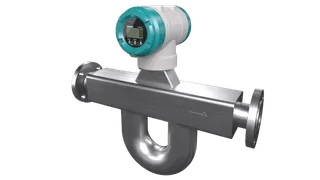

Imagine a rugged Coriolis meter for very tough operating conditions – the radical FC620/FC640
- FCS600 sensor + FCT020/FCT040 transmitter = FC620/FC640 flowmeter system
- FCS600 sensors combine with compact or remote transmitters
- Superior aeration handling and advanced diagnostic functionality
- Gas void fraction and net oil computing functions deliver in multi-phase applications
- Dynamic pressure compensation up to 700 bar
Benefits
- Choose your sensor based on your applications need and afterwards select the transmitter model based on the communication and performance requested.
- The modular concept allows to find the right fit for your need.
- Maximum accuracy due to calibration facility accredited according to ISO/IEC 17025
- Tube health check (diagnostic verification) alerts of potential performance issues doe to process events, e.g. unwanted gas or vapor breakout & solid deposits building up in the tubes.
- High measurement sensitivity & intelligent dynamic range keeps the measurement active even in demanding high damping cases.
- Precise flow rate measurement of fluids and gases, multi-phase fluids and fluids with specific gas content using the Coriolis principle.
Detail
| Measuring range | 1.5 – 170000 kg/h |
| Maximum process temp. | -196 to +350 °C |
| -321 to +662 °F | |
| Wetted materials | 316L SS/1.4404 or |
| Alloy 22/2.4602 | |
| Sensor size | DN15 – DN65 |
| Maximum pressure | Up to 700 bar |
| Up to 10000 psi | |
| Approvals | |
| – Ex-approvals | ATEX |
| IECEx | |
| FM | |
| Korea Ex | |
| – Hygienic | 3A |
| EHEDG | |
| – Marine | Det Norske Veritas |
| (class 2 and 3) | Lloyds Register |
| Bureaux Veritas | |
| American Bureaux of | |
| Shipping | |
| Korean Register | |
| Features | Functional Safety SIL2/3 |
| Custody Transfer (NTEP) | |
| Namur NE 21, NE 95 | |
| Tube Health Check |
