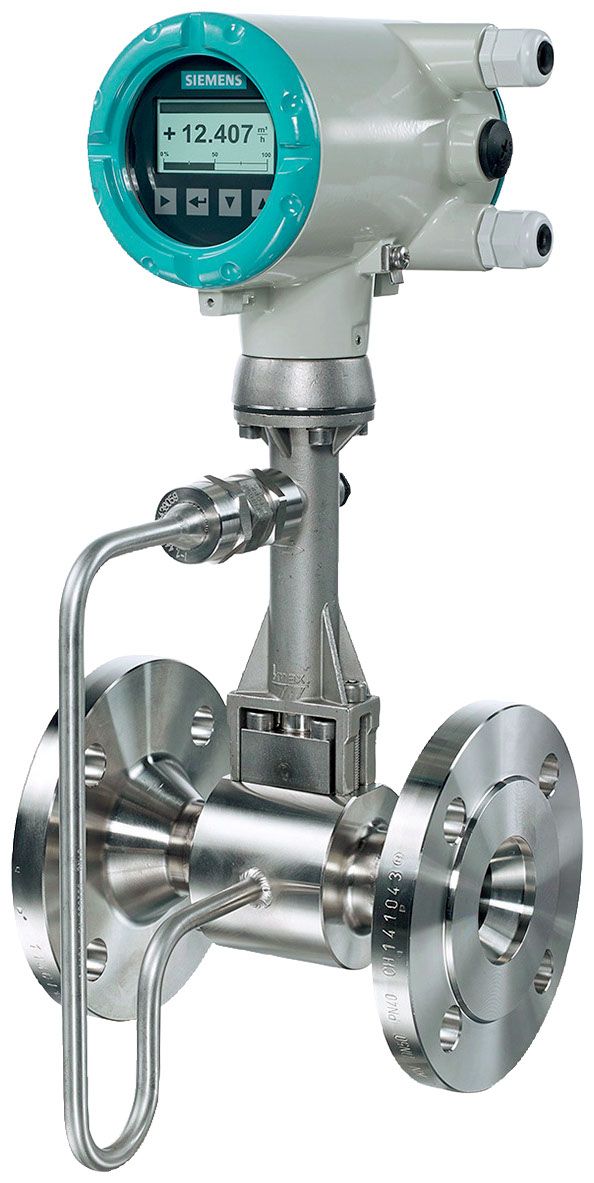

SITRANS FX is the easy-to-use vortex solution for volume and mass flow of steam, gas and liquids. The reliable all-rounder combines the monitoring of flow, pressure and temperature – from saturated and superheated steam to raw chemicals and from compressed air to crude oil. Your advantage: Higher energy and process efficiency, measurement accuracy and significant cost savings. Take your steam, gas and liquid measurements to a whole new level with the digitally based SITRANS FX330 vortex flowmeter. Designed primarily for applications in auxiliary, supply and energy systems, this device is also highly versatile for use in the process industry. With its new features like the integrated heat meter, status alarms in conformity with NAMUR NE107 and extensive Ex approvals, the SITRANS FX330 is ideal for a broad range of chemical, power, and oil and gas installations. The vortex flowmeter product program consists of two types of flowmeters: a flange and a sandwich version.
Benefits
- No wear – Stainless steel construction with high resistance to corrosion, pressure and temperature
- Useable in hazardous areas – SIL2 certified according to IEC 61508 Edition 2
- Space-saving installation – Integrated reduction of nominal diameter for economic installation
- Redundant data management – Exchange of electronics without loss of calibration and configuration data
- Advanced energy management – Gross and net heat calculation
Technical Overview
| Nominal Size Flanged Version | DN15 to DN300 (½” to 12”) |
| Nominal Sizes Sandwich Version | DN15 to DN100 (½” to 4”) |
| Process Values | Volume flow, mass flow, corrected volume flow, density, temperature, pressure, heat energy |
| Accuracy |
|
| current Output | 4 – 20 mA HART (loop powered) |
| Digital Output | Pulse (max. 1000 Hz), frequency, status, limit switch |
| Communication | HART 7, Profibus PA and Foundation Fieldbus in preparation |
| Pressure Rating | PN 10 – 100; Class 150 – 600 |
| Medium Temperature | -40 … 240 °C (-40 … 464 °F) |
| Material Sensor | Stainless steel 1.4404 (316L), Hastelloy C22 on request |
| Transmitter Enclosure | Die-cast aluminium |
| Enclosure | IP66 / 67 (NEMA 6) |
| Connection |
|
| Remote Transmitter | Connection cable up to 50m (164 ft), remote version in preparation |
| Temperature Sensor | Standard integrated temperature sensor |
| Pressure Sensor | Optional integrated pressure sensor with or without isolation valve |
| display and Keypad | High-resolution graphical display and 4 operating keys (alternative use magnet pen) |
| Ex-approvals |
|
| Safety Integration Level (SIL) | SIL2 according to IEC 61508 |
| Application | chemical, power, and oil and gas installations |
Catalog :
SITRANS FX330
