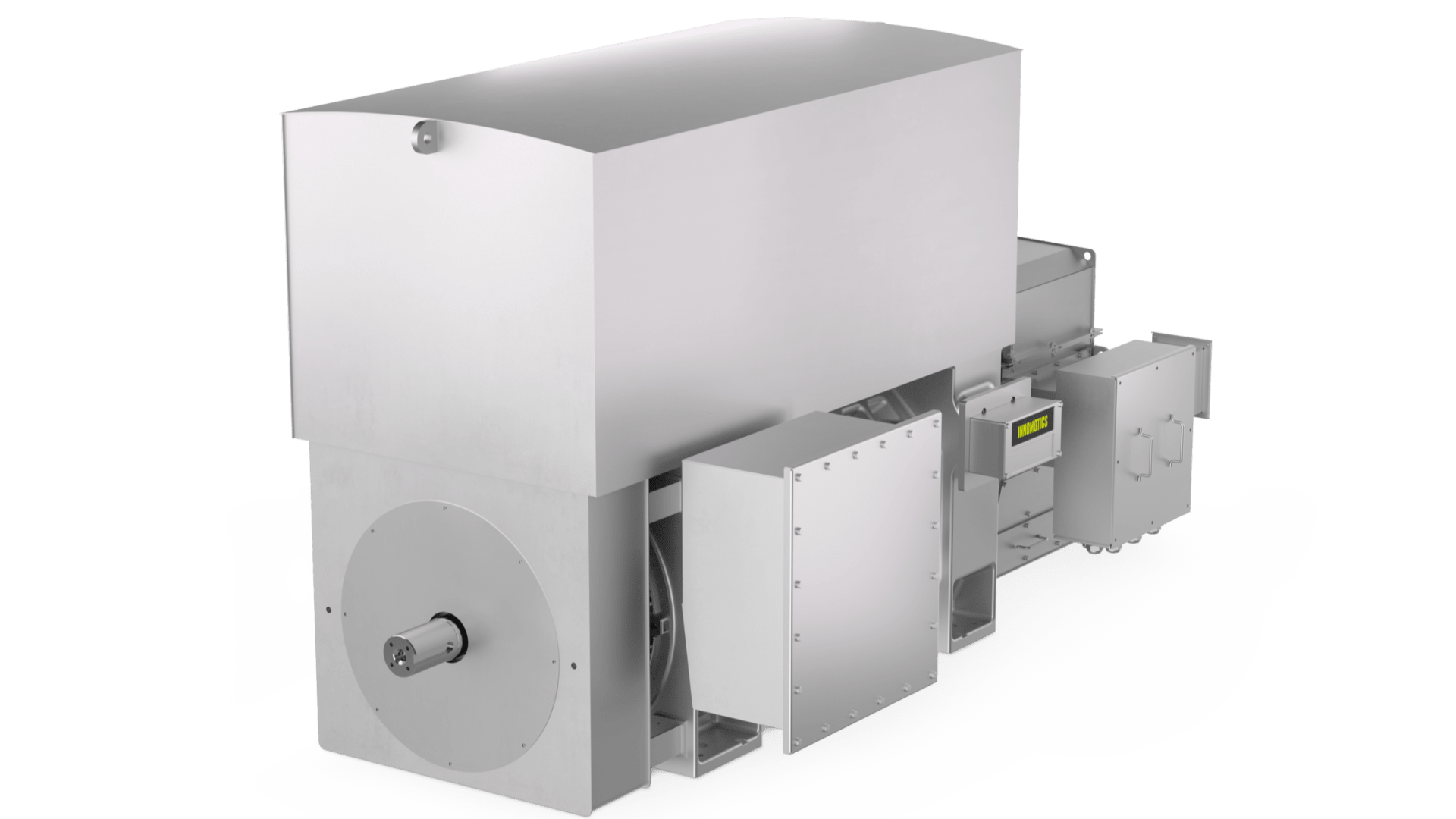

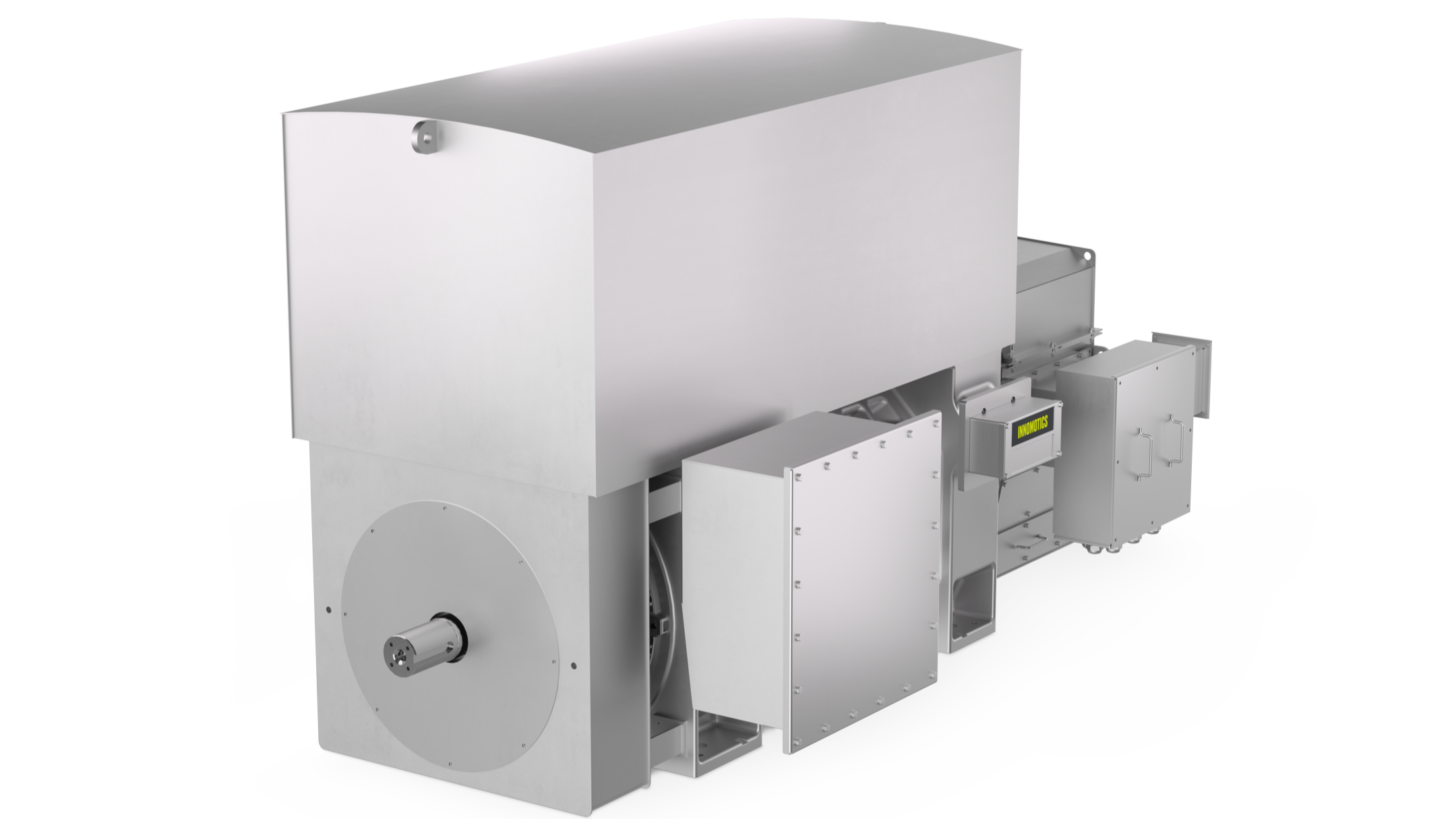

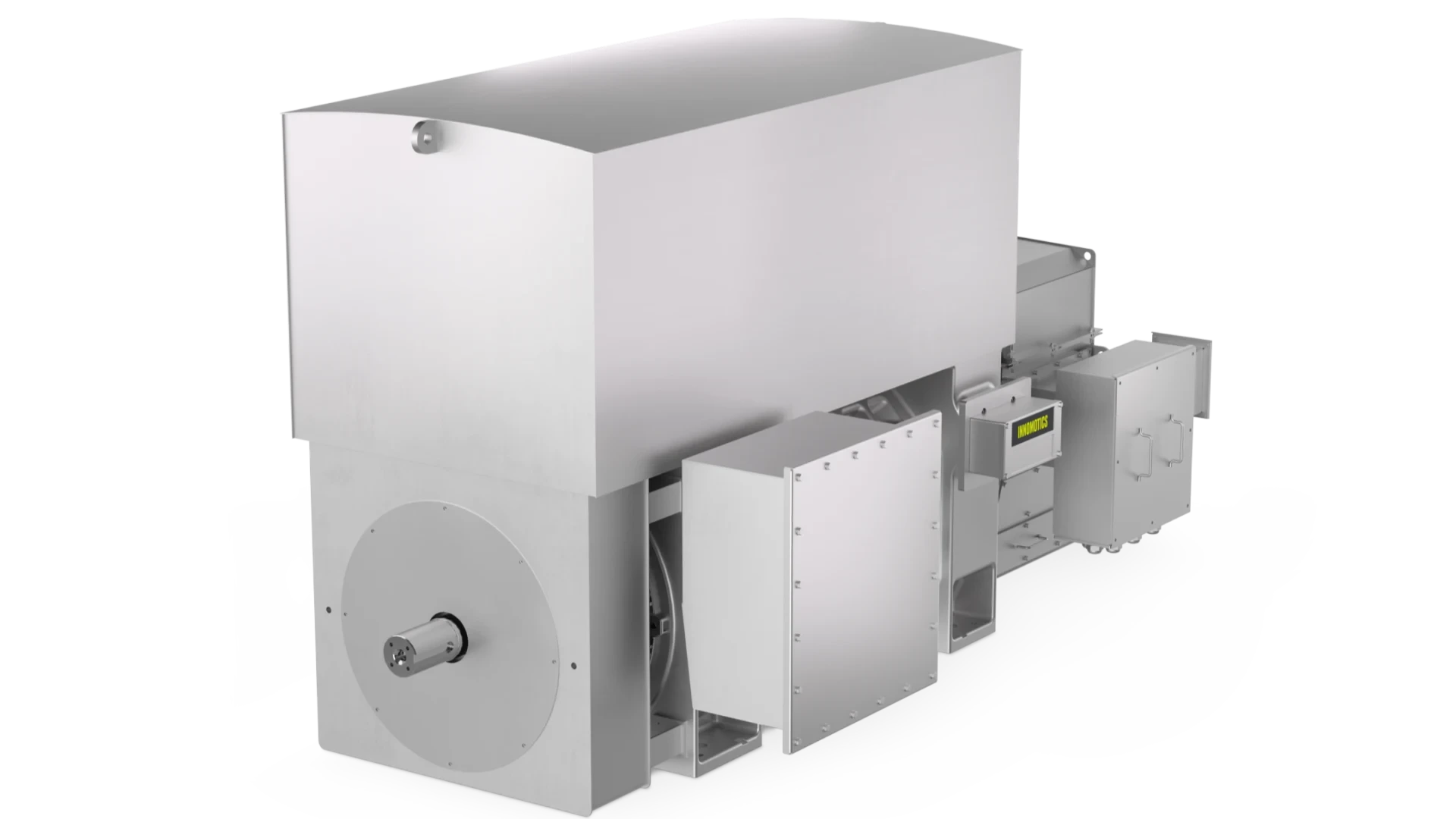

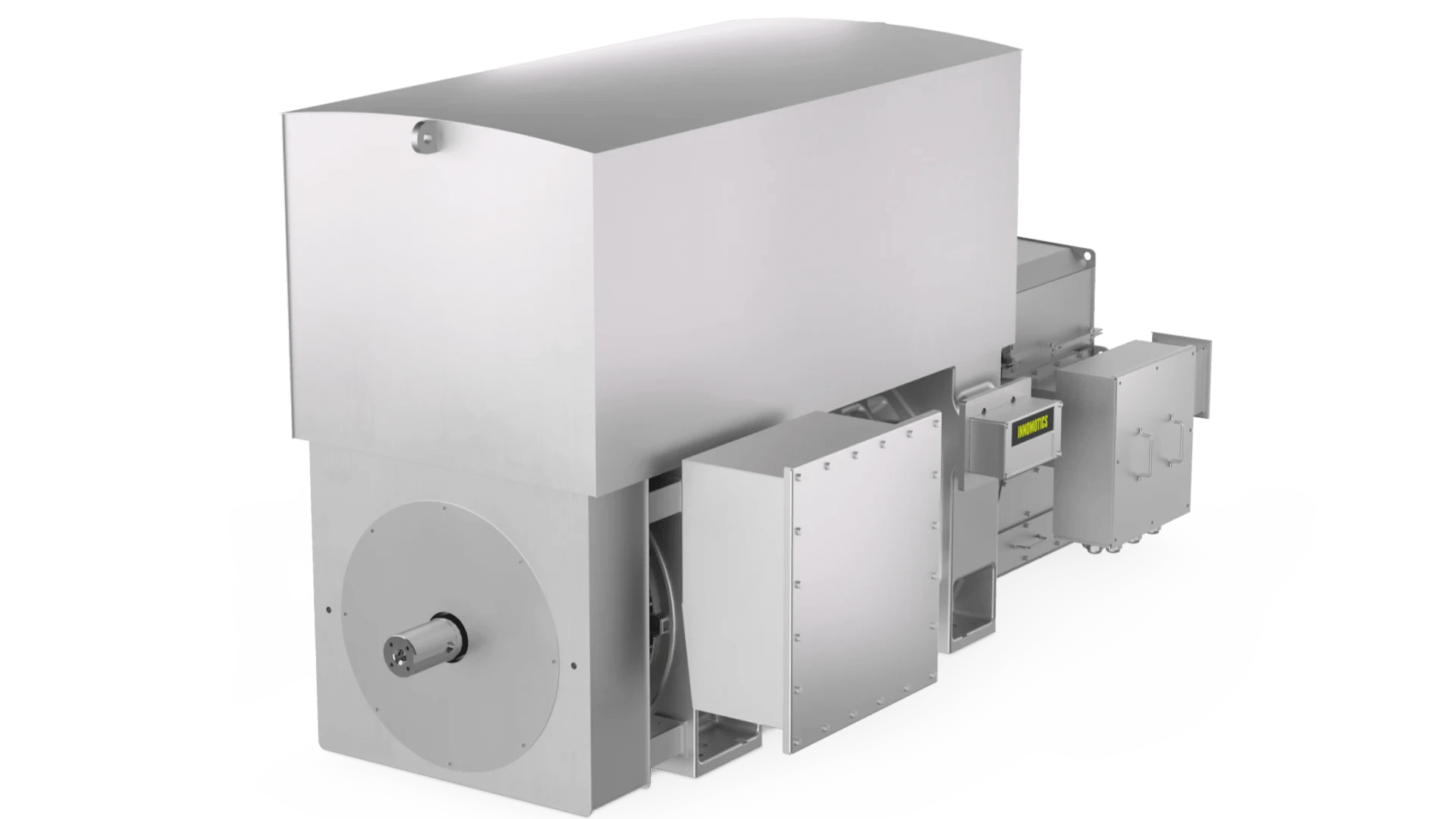

Innomotics HV M slipring
The Innomotics HV M slipring motor is an advanced high voltage motor specifically designed to handle applications with high load inertia, making it an optimal choice for industries such as cement and mining. These sectors often demand robust and reliable motor solutions due to the heavy machinery and continuous operations involved. The Innomotics HV M motor not only meets these demands but also enhances the overall service life of the plant, ensuring efficient and long-lasting performance.
One of the key aspects of the Innomotics HV M motor is its development using Siemens’ cutting-edge software, Unigraphics NX, and Teamcenter PLM. These tools are renowned for their precision and advanced capabilities in product lifecycle management and 3D modeling. By leveraging these technologies, the motor has been meticulously designed and optimized to deliver superior performance in demanding industrial environments. The integration of Siemens’ software ensures that every aspect of the motor’s design and functionality is thoroughly tested and refined, resulting in a highly reliable and efficient product.
The use of 3D models in the development process of the Innomotics HV M motor offers significant benefits to plant operators. One of the primary advantages is the reduction in time required for plant upgrades. By providing detailed and accurate 3D models, plant engineers can easily visualize and plan the integration of the motor into existing systems. This not only speeds up the upgrade process but also minimizes the risk of errors and ensures a seamless transition. The ability to quickly and efficiently upgrade plant machinery is crucial in industries where downtime can result in substantial financial losses.
In summary, the Innomotics HV M slipring motor is an exceptional high voltage solution tailored for high load inertia applications in the cement and mining industries. Its development using Siemens’ Unigraphics NX and Teamcenter PLM software guarantees precision and reliability. The 3D models provided with the motor facilitate rapid and error-free plant upgrades, enhancing overall operational efficiency and service life.
Technical Overview
| Shaft height | 355 up to 630 mm (SH710 and higher on request) |
| Power rating | 200 kW up to 4.5 MW (higher on request) |
| No. of poles | 4 / 6 / 8 (other pole numbers on request) |
| Rated voltages | up to 11 KV |
| Degree of protection | IP55 |
| Cooling type | IC 611, IC 616 (shaft height 355 – 630 mm) |
| Type of motor | Asynchronous |
| Operating mode | DOL |
