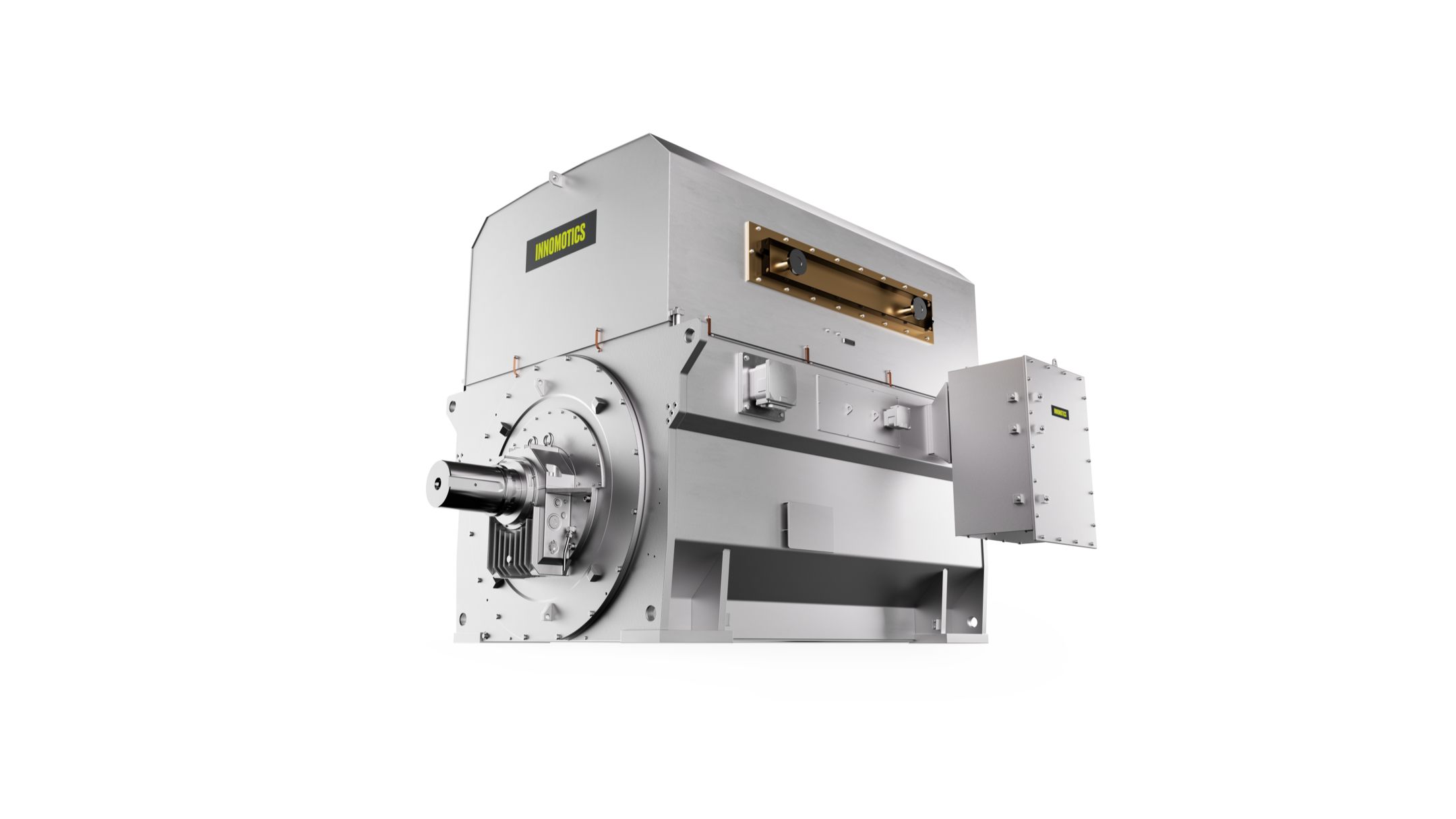

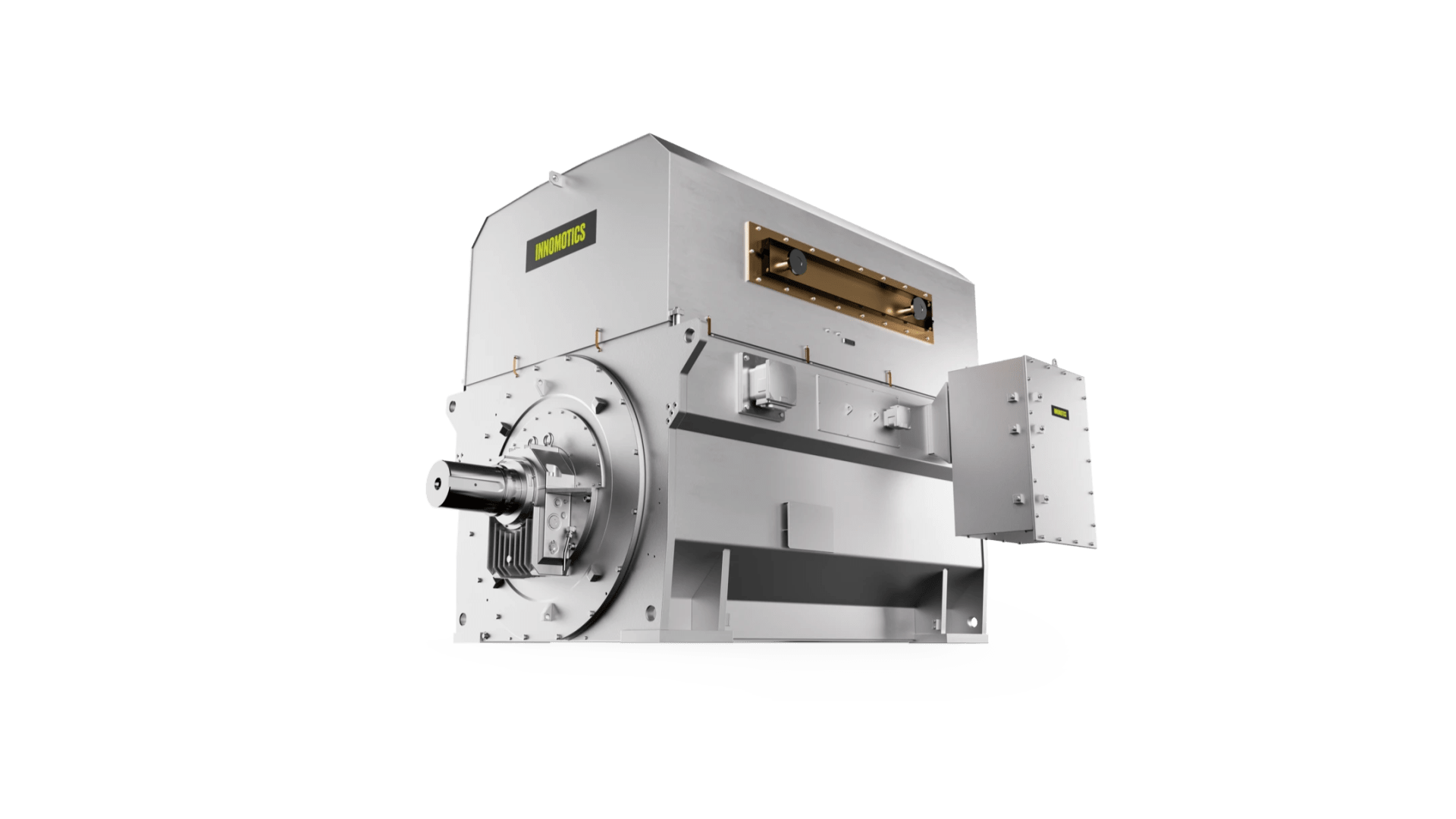

Innomotics HV M with steel welded housing (standard for shaft height 630 to 900 mm)
High voltage motors featuring a modular cooling concept are incredibly versatile and widely used across various industries, including oil & gas, water & wastewater, and power generation. The modular cooling design allows these motors to be tailored to specific application needs, ensuring optimal performance and efficiency in diverse environments.
One of the primary benefits of these high voltage motors is their exceptional reliability. Designed to withstand harsh conditions and demanding operations, these motors are built with robust materials and advanced engineering techniques. This ensures consistent performance and minimal downtime, which is crucial for industries that rely on continuous and efficient operation.
Mechanical stiffness is another significant advantage of these motors. Enhanced stiffness contributes to the stability and durability of the motor, allowing it to handle high loads and stresses without compromising its integrity. This is particularly important in applications where precision and accuracy are critical, such as in the oil & gas industry.
In addition to reliability and mechanical stiffness, these high voltage motors are also designed to reduce noise levels. Noise reduction is a vital feature in many industrial settings, where excessive noise can be a significant concern for both workers and the environment. By operating more quietly, these motors help create a safer and more comfortable working environment.
Weight optimization is another key feature of these motors. By being weight-optimized, they can be more easily integrated into various systems and applications. Lighter motors are easier to handle and install, and they can also contribute to overall system efficiency by reducing the load on supporting structures and components.
Overall, high voltage motors with a modular cooling concept offer a combination of reliability, mechanical stiffness, reduced noise values, and weight optimization. These features make them an ideal choice for a wide range of industries, ensuring that they can meet the specific needs and demands of various applications while maintaining high performance and efficiency.
Technical data overview
| Shaft height | 450 up to 560 mm: cast iron enclosure (welded steel on request)
630 up to 900 mm: welded steel enclosure |
| Power rating | up to 29 MW |
| No. of poles | 2 – 12 poles (other pole numbers on request) |
| Rated voltages | 3 – 13.8 KV (also available as low voltage version) |
| Degree of protection | IP23, IP24W, IP55, IP56 non-heavy-sea |
| Cooling type | IC 01
IC 81 W, IC 86 W IC 611, IC 616, IC 666 |
| Efficiency | up to 98 % |
| Explosion protection | Increased safety, Zone 2, Ex ec
Pressurized, Zone 1, Ex pxb, Ex pzc, Ex tc |
