Main Product >> High Voltage Motors

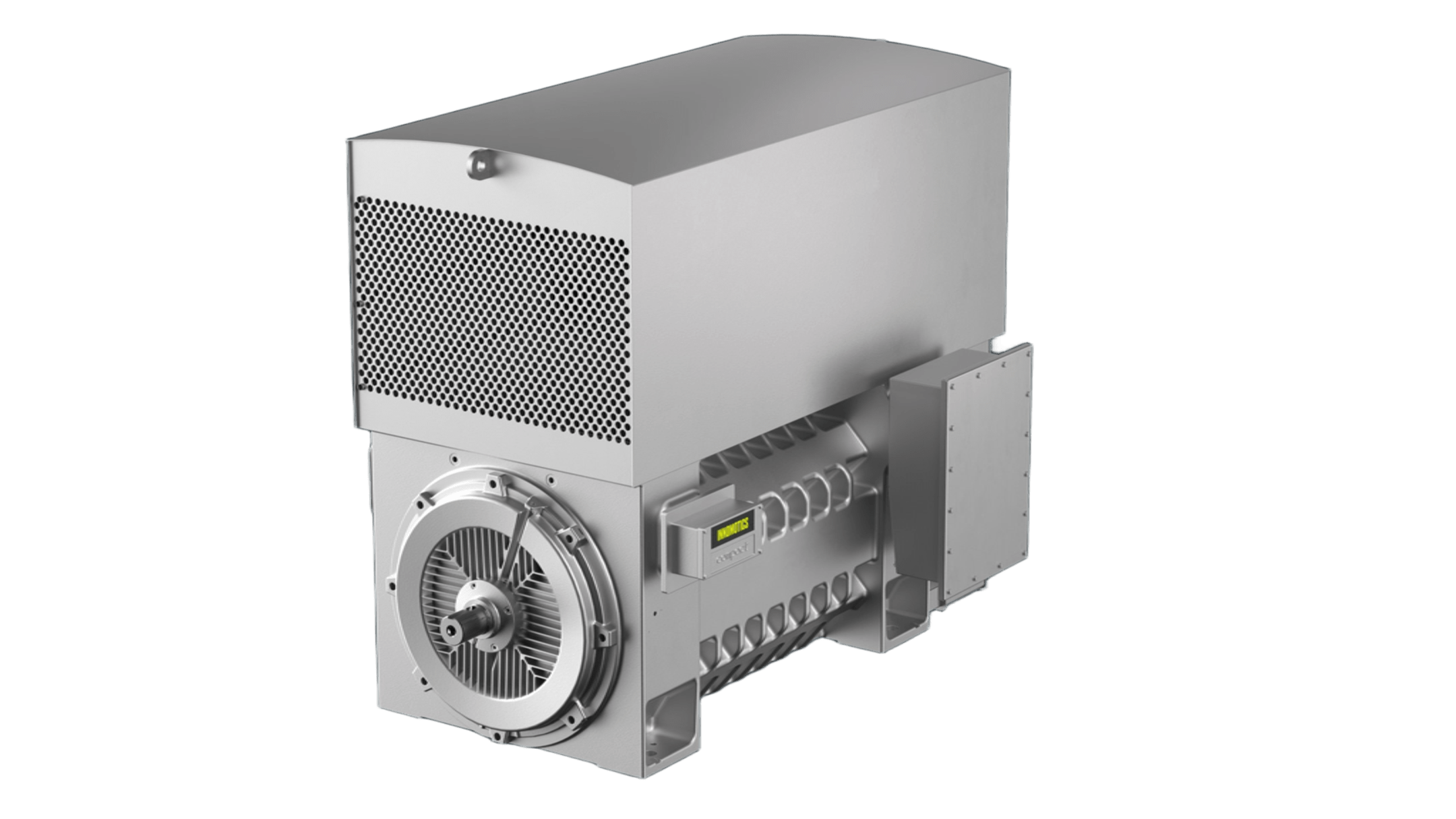

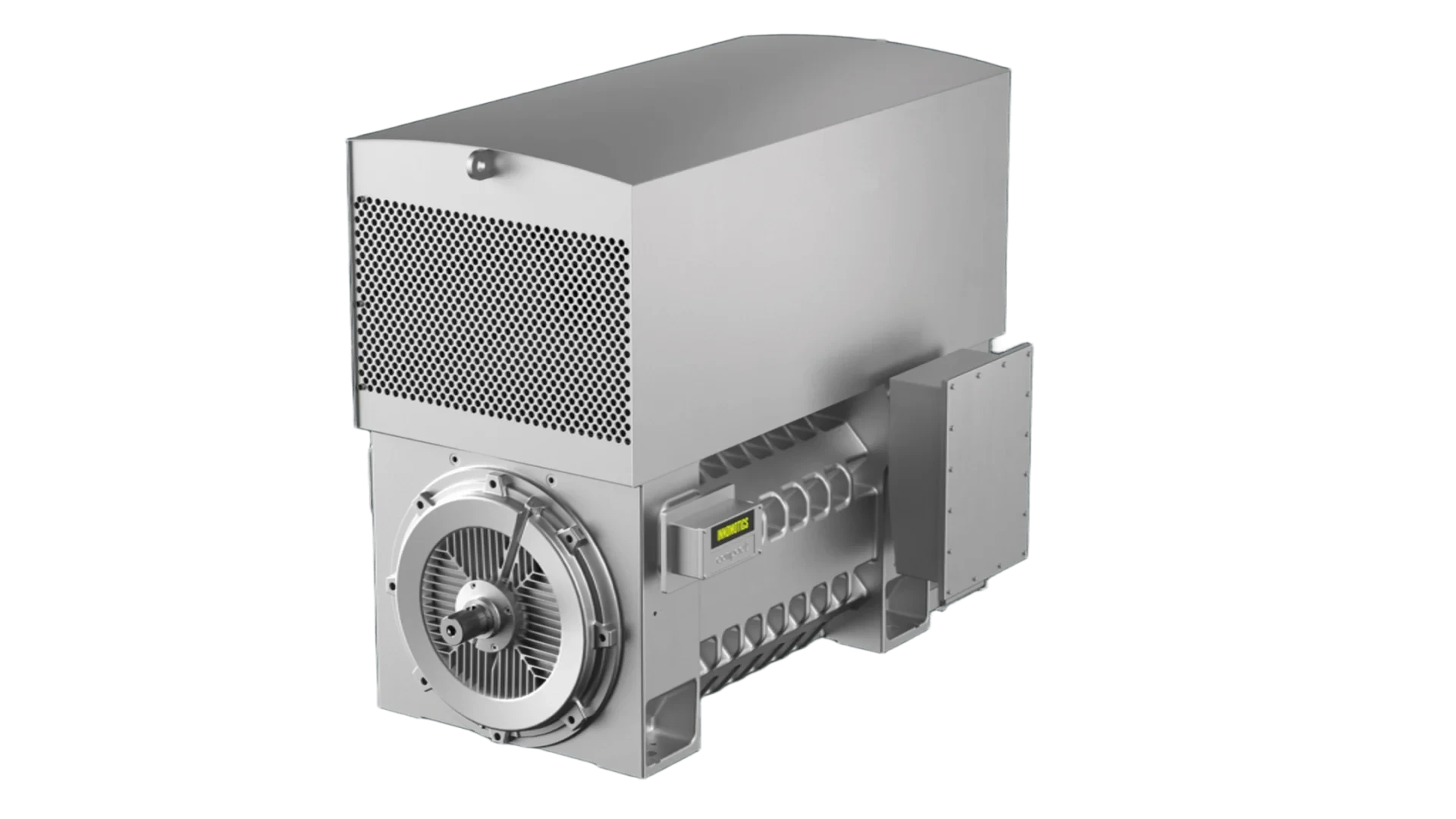

The Innomotics HV Series A-compact-PLUS motors are a testament to engineering excellence, offering a perfect blend of compact design, cost-efficiency, and reliability. These motors are specifically designed to meet the demanding needs of high-power pump, fan, and compressor applications. Their compact size makes them an ideal choice for installations where space is limited, while their cost-efficient design ensures they provide excellent value without compromising on performance or durability.
One of the standout features of the HV Series A-compact-PLUS motors is their modular cooling concept. This innovative cooling system allows for optimal thermal management, ensuring the motors operate efficiently even under strenuous conditions. By effectively dissipating heat, these motors can maintain peak performance over extended periods, reducing the risk of overheating and prolonging their service life. This feature is particularly beneficial in industries where continuous and reliable operation is critical.
The cast iron enclosure of these motors adds to their durability and robustness. Cast iron is known for its strength and resistance to wear and tear, making it an excellent choice for protecting the internal components of the motor. This robust enclosure ensures that the motors can withstand harsh operating environments and continue to perform reliably over time.
The HV Series A-compact-PLUS motors are particularly well-suited for applications in desalination, power generation, and water/wastewater industries. In desalination plants, these motors drive high-power pumps and compressors, playing a crucial role in the process of converting seawater into potable water. In power generation, they support the operation of essential equipment, ensuring a steady and reliable supply of electricity. In the water and wastewater industry, these motors are used to drive pumps and fans that are vital for water treatment and distribution processes.
In summary, the Innomotics HV Series A-compact-PLUS motors offer a compact, cost-efficient, and reliable solution for high-power applications in a range of industries. Their modular cooling concept and cast iron enclosure ensure optimal performance and durability, making them a valuable asset for any industrial operation.
Technical data overview
| Power range | 0.25 – 7.35 MW |
| Shaft height | 355 – 630 mm |
| Rated speeds | 750 – 3600 rpm |
| No. of poles | 2 – 16 |
| Rated voltages | up to 11 kV |
| Protection | IP23, IP24W, IP55 |
| Cooling type | IC 611, IC 616, IC 81 W, IC 86 W, IC 01 |
| Explosion protection | Zone 1: Ex pxb, Ex pzc
Zone 2: Ex e |
