SITRANS FS230

Posted on by
Main Product >> Process instruments >> Flow Measruement >> Ultrasonic

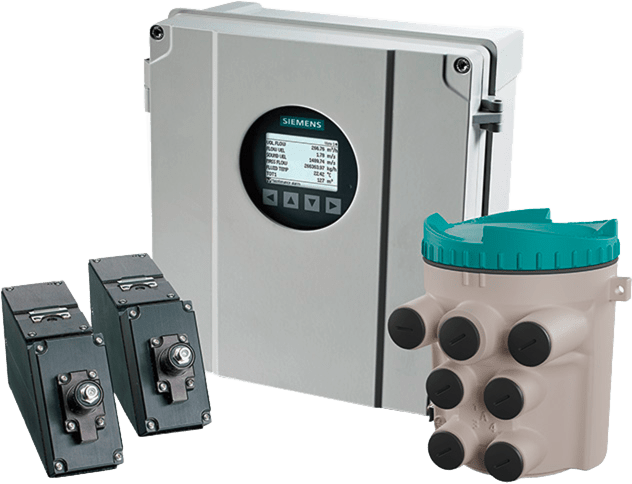

The SITRANS FST030 transmitter with the proven-in-use FSS200 sensors is ideal for challenging applications and the use in Ex areas. The Sitrans FS230 system is compatible with pipe diameters from DN10 up to DN10.000. For applications in hazardous areas, the external electronics module SITRANS FS DSL is used.

Benefits

  • Ideal for measuring tasks that require maximum precision
  • Clamp-on flow system for the measurement of liquids, oil or gas
  • Suitable for new installations as well as retrofitting
  • Designed for use with up to 4 paths
  • Designed for use in Ex areas, safe distance to transmitter of up to 150 m
  • Fast signal processing with 100 Hz update rate
  • High accuracy, repeatability and zero flow detection
  • Downward compatible with all sensors of the SITRANS FUS1011 family
  • Replacement device for SITRANS FUS1010, FUH1010 or FUG1010
  • Designed according to NAMUR requirements and Industry 4.0 with various diagnostic functions

Technical specifications

Enclosure

 Wallmount enclosure: die-cast aluminum, painted, wall or standpipe mounting options, IP65/NEMA 4X for Ex zone 2 or Class 1 Div 2

Industrial enclosure: die-cast aluminum, painted, wall or standpipe mounting options, IP65/NEMA 4X for Ex zone 1/2 or Class 1 Div 1/2

Digital Sensor Link (DSL) – external variant up to 4-path: die-cast aluminum, painted, IP68, for use in Zone 0/1 or Class 1 Div 1/2
Sensors

 FSS200 Sensors (Clamp-On) In the universal or high precision version (up to max. 120 ° C / 250 ° F) or high temperature (up to 230°C/446°F), for use in Zone 0/1 or Class 1 Div 1/2
Process values (primary)

 Volume flow

Mass flow

Standard volume flow

Flow velocity

Speed of sound

Liquident detection

Totalizer 1, 2 and 3
Communication

 HART or Modbus RTU; compatible with SIMATIC PDM; USB service port
Data logger

 4GB SD card, expandable to 32 GB

Data logging in table format (.csv) for: measurement data, alarms, incidents, firmware updates

Logging interval programmable from 1s – 24 hours
I/O options

 3 in/outputs: channel 2, 3 and 4: 4-20 mA active/passive, status output, relay

Inputs channel 5 and 6 on external SITRANS FS DSL: 2 x temperature PT100/500/1000 or 2 x analogue (temperature and pressure)
Display

 Full-graphic display, 240 x 160 pixel, backlit
Power supply

 24 V DC / 90 – 240 VAC
Approvals

 UL, cUL, CE, ATEX, FM, and more
Measuring accuracy

  ≥ 0,3%
Flow range

 Liquids ±12 m/s (±40 ft/s), gas, ±40 m/s and more; bidirectional
Pipe diameters

 12,7 mm to 10 m (0.5″ to 394″)

Typical applications: drinking water supply, water networks, cooling water in power plants, chemical liquids (Ex areas possible), crude oil providers and pipeline operators (product and margin detection, leakage detection, pig runs), gas transport and gas providers in high pressure grids.
