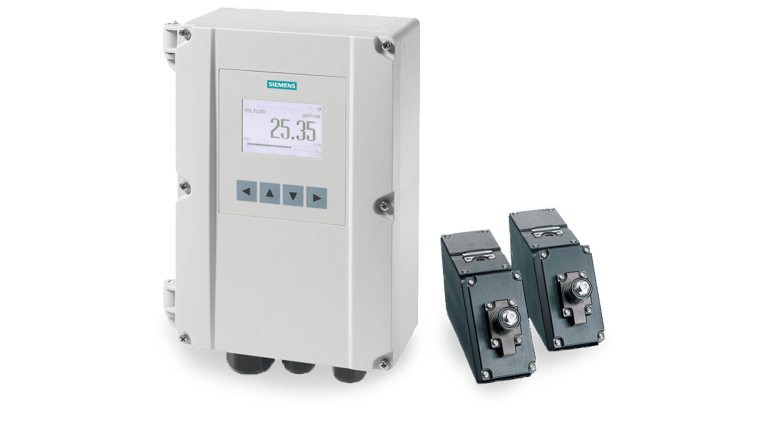

The SITRANS FS220 digital clamp-on ultrasonic flowmeter provides the most essential flow measurement functionalities with superior accuracy, cost efficiency and ease of use. It is the best-in-class solution for straightforward flow monitoring of liquid processes. The SITRANS FS220 flow system consists of a SITRANS FST020 transmitter paired with SITRANS FSS200 clamp-on ultrasonic sensors.
Benefits
Built on the same architecture as other next-generation digital flow systems from Siemens, the SITRANS FS220 features among others :- High accuracy and repeatability – accuracy of 1% of flow rate and repeatability of 0.25% according to ISO 11631
- Exceptional zero stability – minimal need to set a zero point
- Best-in-class user-friendliness – fully graphical display with simple menu navigation, multiple setup wizards and the option to display up to 6 customizable parameters on the same screen
- Easy servicing – includes removable SensorFlash® microSD card and built-in USB service port
Technical Overview
| Measuring Range | 0 to 10 m/s |
| Nominal Sizes | From DN 2 to DN 100 (1/12" to 4") |
| Accuracy |
|
| Operating Pressure | Max. 40 bar (Max. 580 psi) |
| Ambient Temperature | From -40 to 100 oC (-40 to 212 oF) |
| Medium Temperature | From -30 to 200 oC (-22 to 390 oF) |
| Liners |
|
| Electrodes |
|
| Material | Stainless Steel AISI 316L (1.4404) |
| Approvals | ATEX - 2 GD Zone 1, FM Class 1 div 2 |
| Application | Process Industry, Chemical Industry, Pulp & Paper Industry |
Catalog :
SITRANS FSS220
