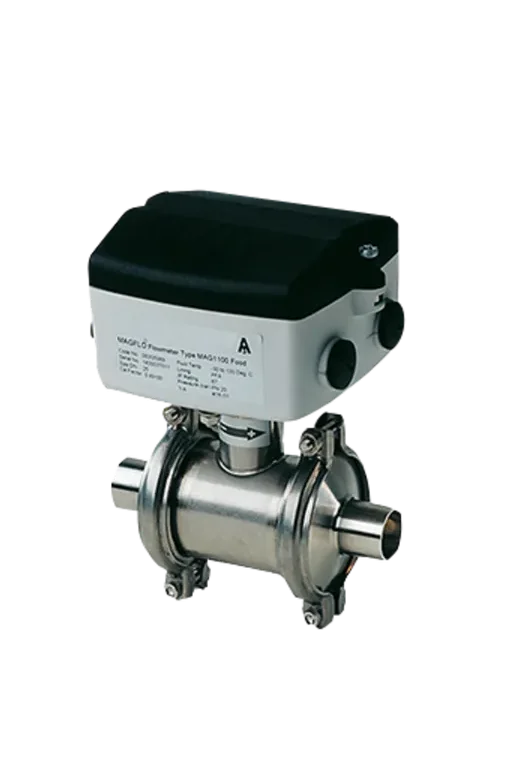

SITRANS FM MAG 1100 F - Siementechno Drive

Main Product >> Process instruments >> Flow Measruement >> Electromagnetic >> Sensor

The SITRANS FM MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical industries and is available with hygienic and flexible process connections.

Benefits

Flexible and unique process connections
Standard liner options that fully cover the food and beverage applications
Short delivery time on standard process connections
Sanitary design for CIP/SIP cleaning
SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 500 / 6000 transmitter for all products (MAG 5100 /3100/ 1100):
• Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
• Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
• “Hot swapable” – exchangeable during operation
• Mounting flexibility – compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics – Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.

Detail

Meassuring range	0 to 10 m/s
Nominal size	From DN 10 to DN 100 (3/8″ to 4″)
Accuracy	0.2 % ± 1 mm/s 0.4 % ± 1 mm/s (PFA)
Operating pressure	Max. 40 bar (Max. 580 psi)
Ambient temperature	From -40 to 100 °C (-40 to 212 °F)
Medium temperature	From -30 to 150 °C (-20 to 300 °F)
Liners	Ceramics PFA
Electrodes	Platinum Hastelloy
Material	Stainless steel AISI 316L (1.4404)
Approvals	ATEX – 2 GD Zone 1, FM Class 1 div 2 3A

Application Examples: food industry, beverage industry, pharmaceutical industry

Catalog :

SITRANS FM MAG 1100 F
