Main Product >> Process instruments >> Flow Measruement >> Coriolis >> Sitrans FC Flowmeter System
Precision Coriolis multi-parameter flowmeter systems for low flow applications.

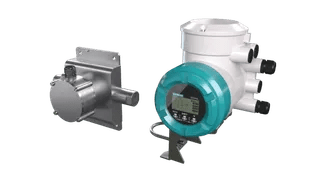

- FCS100 sensor + FCT020/FCT040 transmitter = FC120/FC140 flowmeter system
- FCS100 sensors always combine with a remote transmitter, via a connecting cable
- Strong signal to noise characteristic resistant to process and external influence
- Batching function with leakage detection and batch control for precise dosing
- Accurate density measurement and up to four fraction (concentration) measurements
Benefits
- Choose your sensor based on your applications need and afterwards select the transmitter model based on the communication and performance requested.
- The modular concept allows to find the right fit for your need.
- Maximum accuracy due to calibration facility accredited according to ISO/IEC 17025
- Tube health check (diagnostic verification) alerts of potential performance issues doe to process events, e.g. unwanted gas or vapor breakout & solid deposits building up in the tubes.
- High measurement sensitivity & intelligent dynamic range keeps the measurement active even in demanding high damping cases.
- Precise flow rate measurement of fluids and gases, multi-phase fluids and fluids with specific gas content using the Coriolis principle.
Detail
| Measuring range | 0.01 – 1500 kg/h | |
| Maximum process temp. | -50 to +260 °C | |
| -58 to +500 °F | ||
| Wetted materials | Alloy 22/2.4602 and | |
| 316L/1.4404 | ||
| Sensor size | DN1 – DN8 | |
| Maximum pressure | Up to 285 bar | |
| Up to 4183 psi | ||
| Approvals | ||
| – Ex-approvals | ATEX | |
| IECEx | ||
| FM | ||
| Korea Ex | ||
| – Hygienic | ||
| – Marine | Det Norske Veritas | |
| (class 2 and 3) | Lloyds Register | |
| Bureaux Veritas | ||
| American Bureaux of | ||
| Shipping | ||
| Korean Register | ||
| Features | Functional Safety SIL2/3 | |
| Custody Transfer (NTEP) | ||
| Namur NE 21, NE 95 | ||
| Tube Health Check |
