Our portfolio

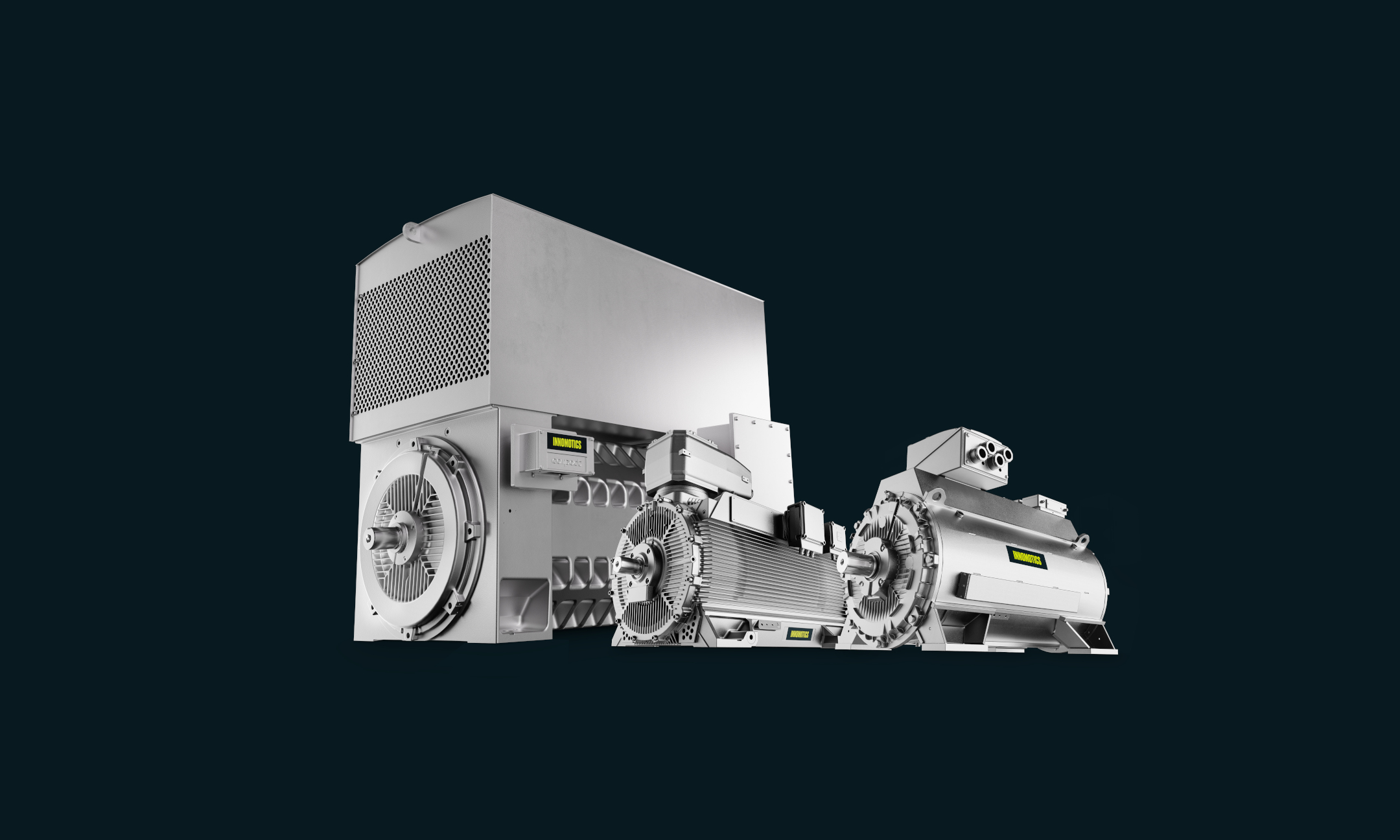

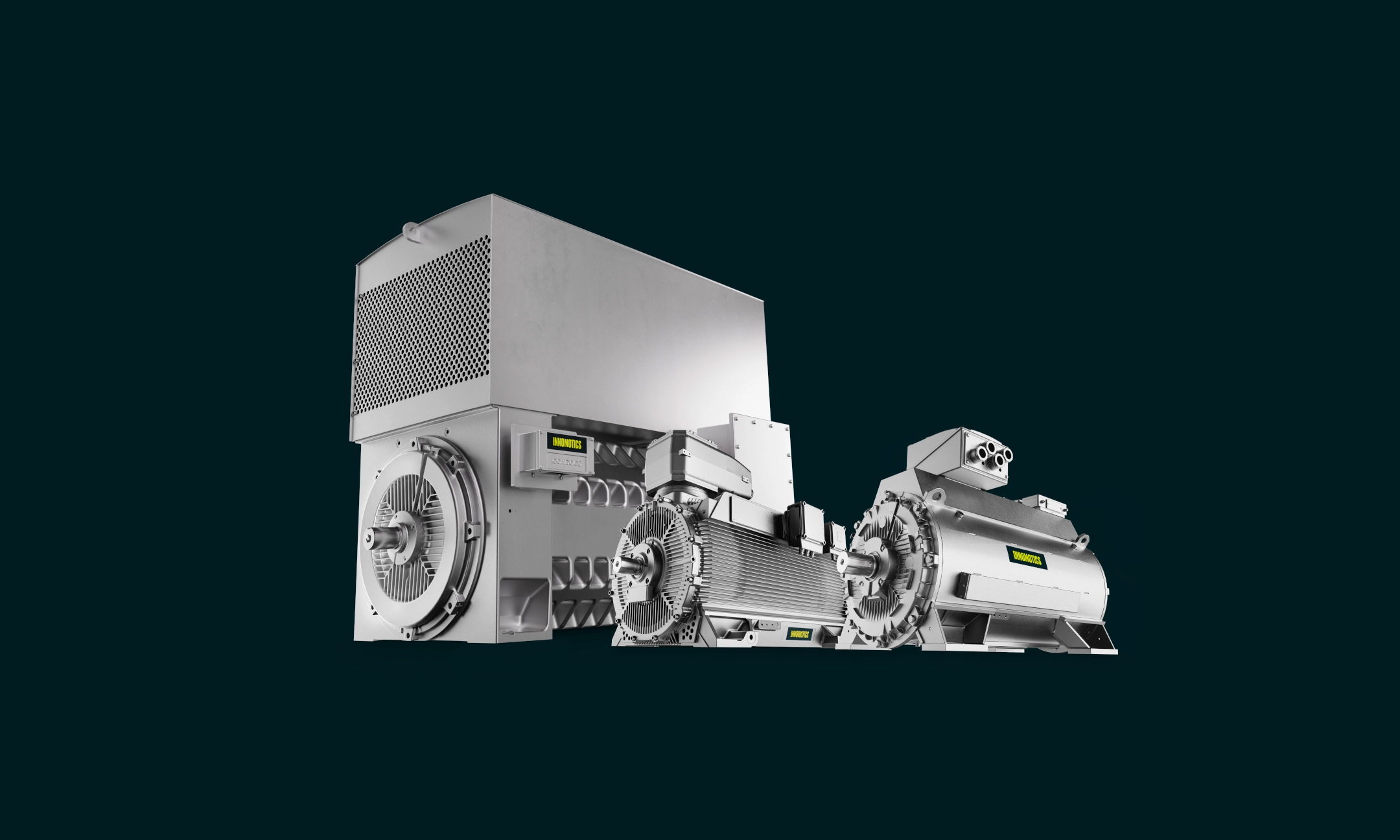

Our transnorm motors cover a power spectrum up to 5.3 MW in the low voltage range. They are available with all usual cooling methods, and convince due to their compactness, efficiency and reliability. These motors are designed for main or converter operation, in a wide variety of industries, such as chemicals, oil & gas, cement, mining, paper, water and waste water, steel and shipbuilding.

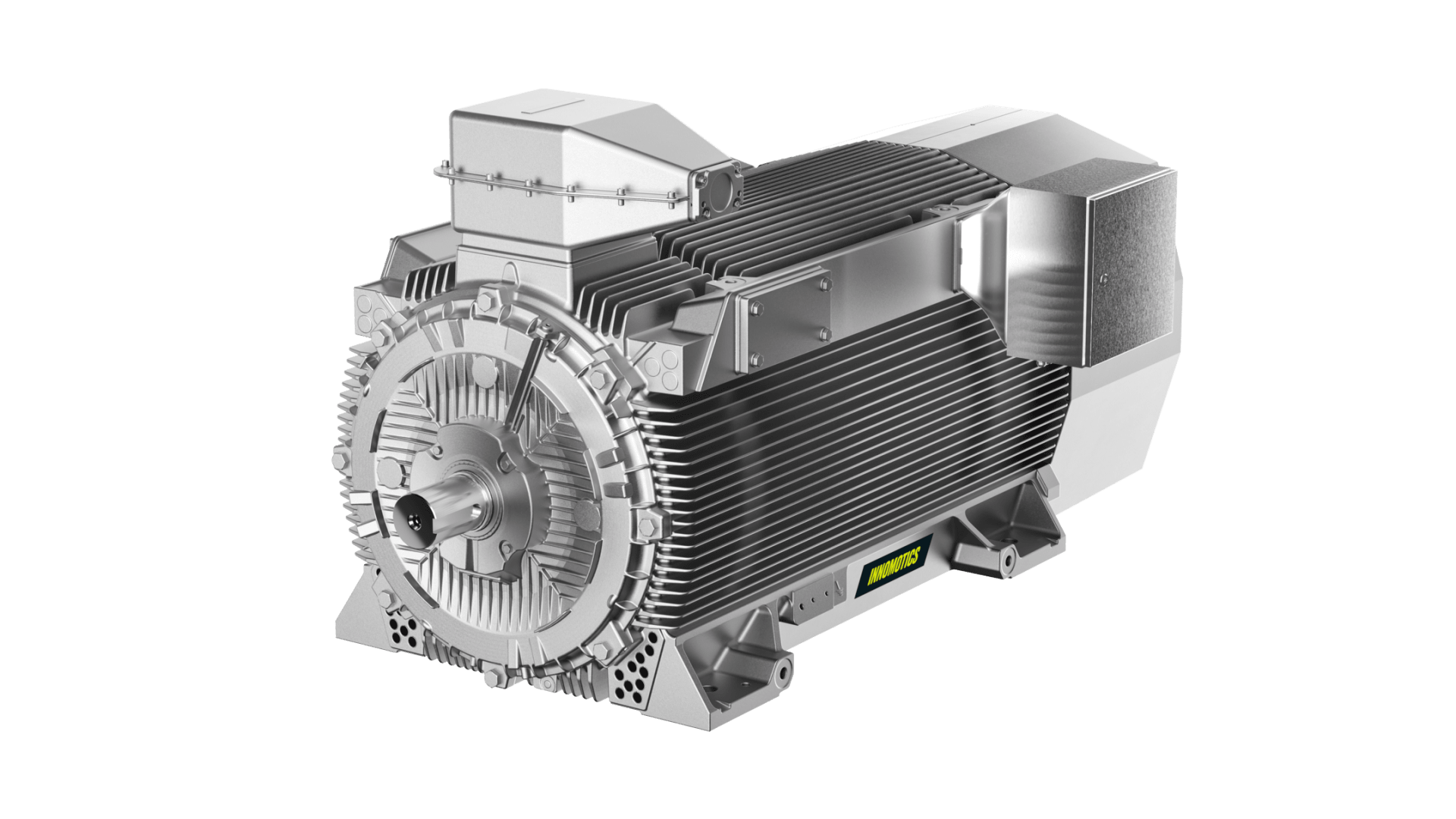

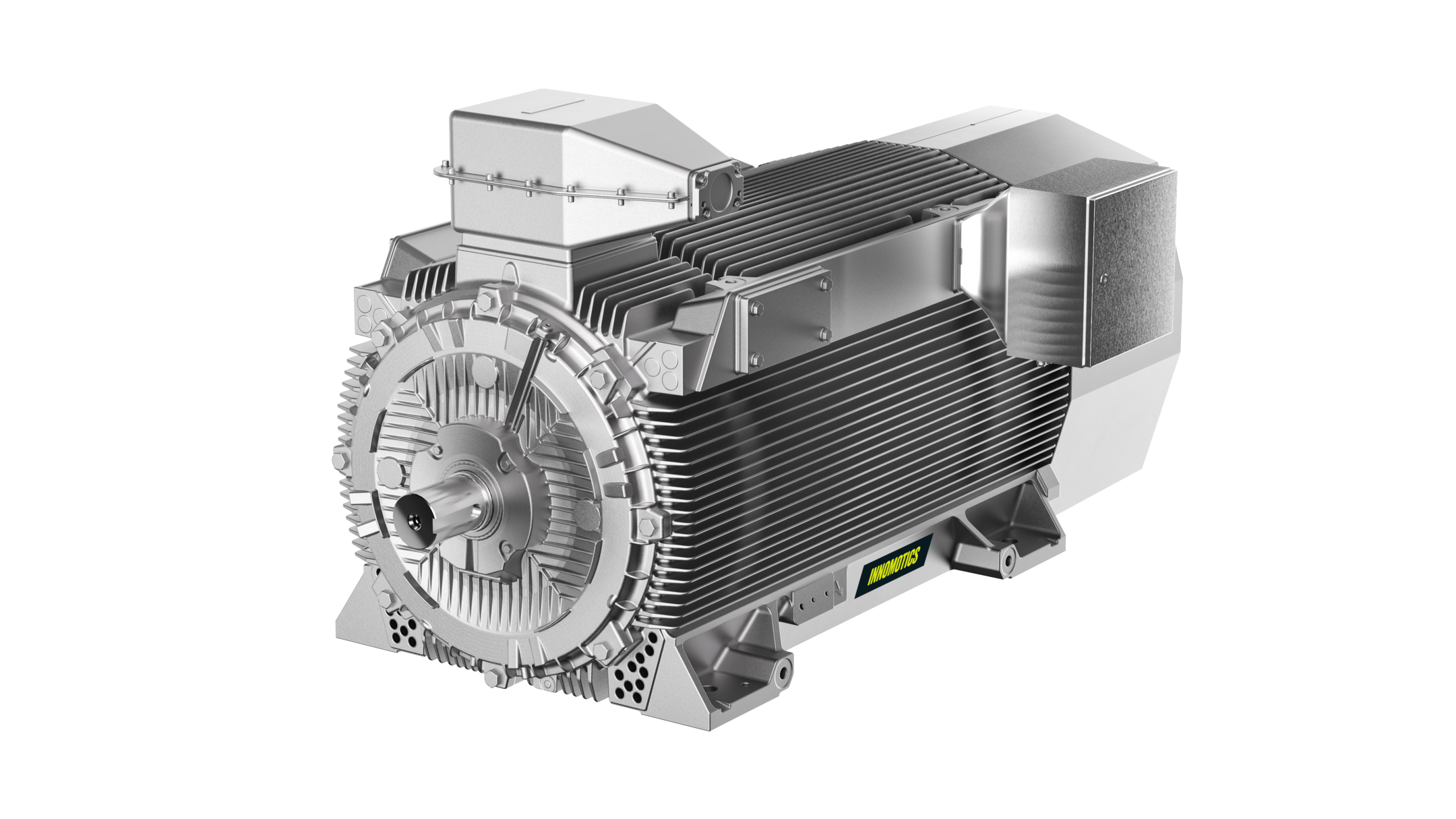

Innomotics HV C air-cooled
|
Type of motor
|
Asynchronous
|
|
Power range
|
up to 2.2 MW
|
|
Voltage range
|
380 – 690 V
|
|
Shaft height
|
400 – 560 mm
|
|
Number of poles
|
2 – 8
|
|
Operating mode
|
VSD
|

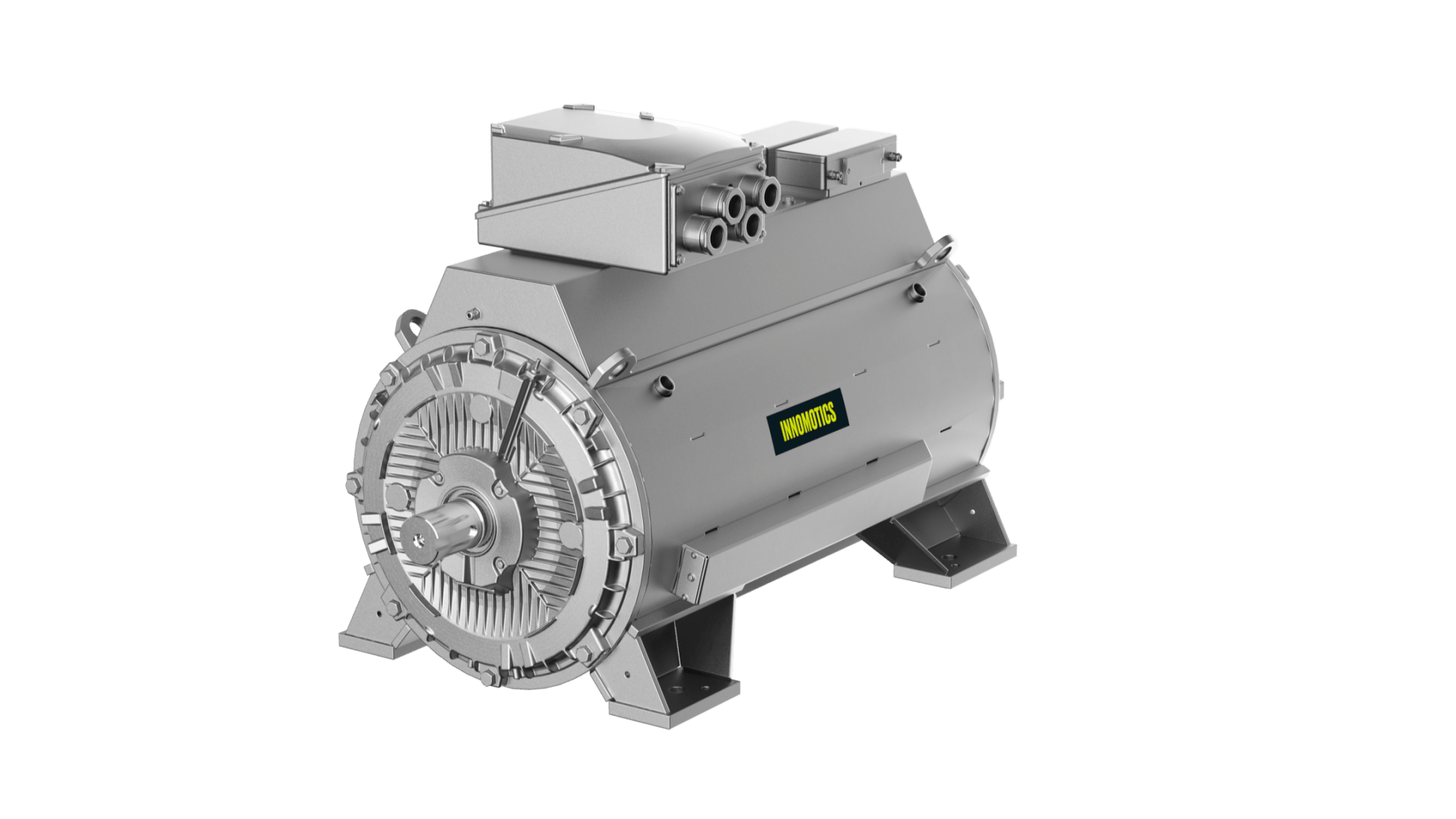

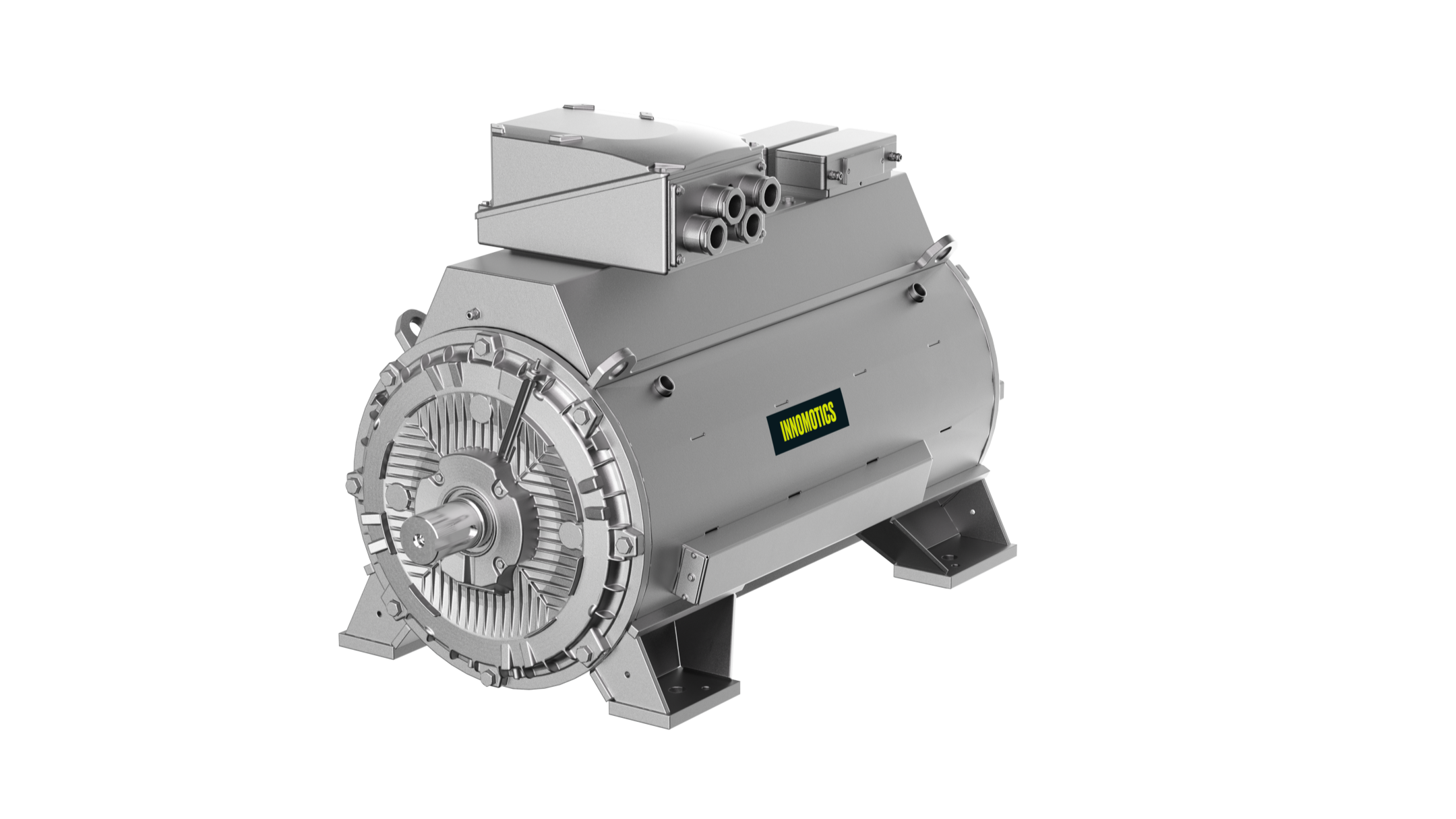

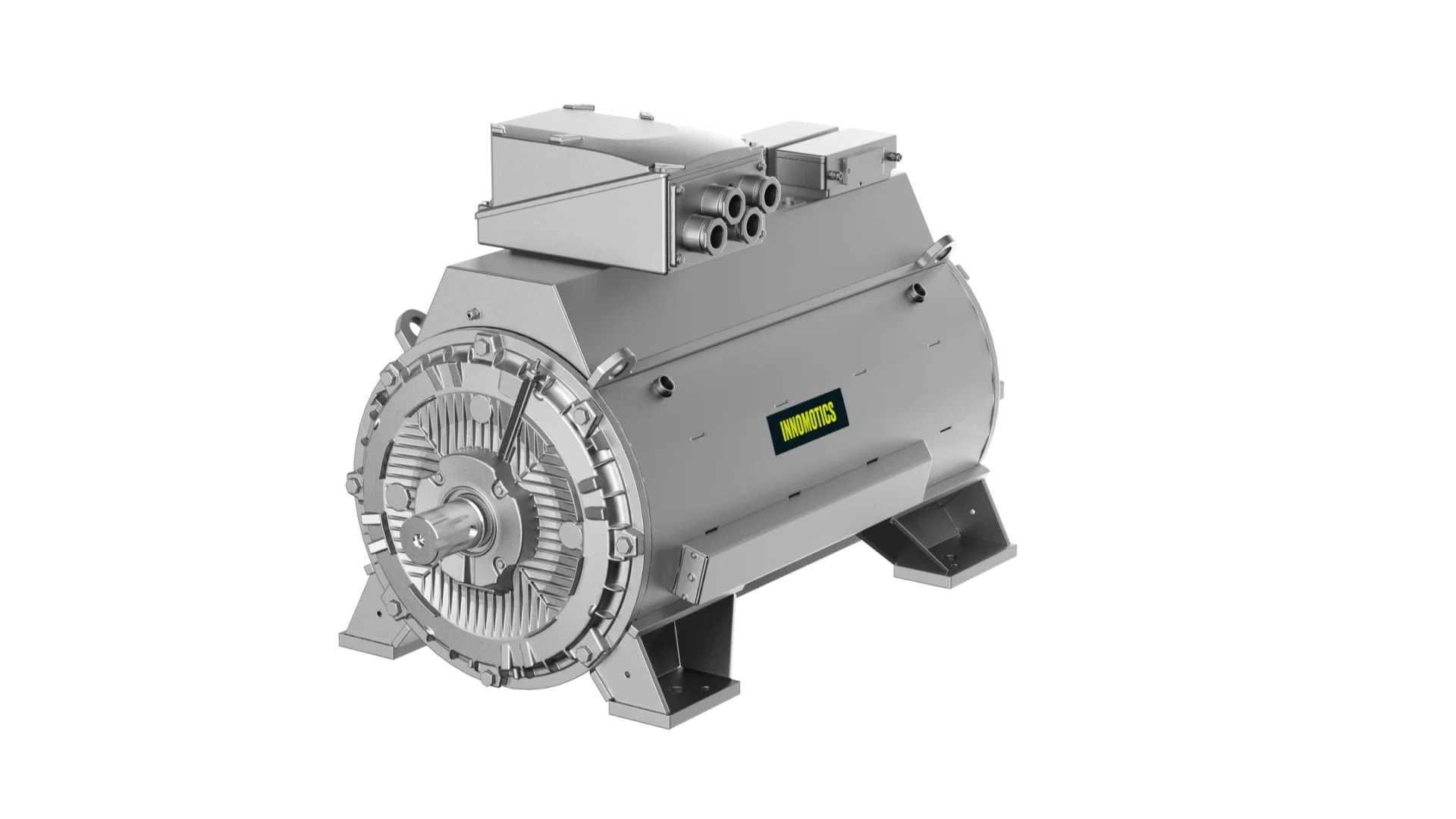

Innomotics HV C water-jacket-cooled
|
Type of motor
|
Asynchronous
|
|
Power range
|
up to 2.6 MW
|
|
Voltage range
|
380 – 690 V
|
|
Shaft height
|
400 – 560 mm
|
|
Number of poles
|
2 – 8
|
|
Operating mode
|
VSD
|

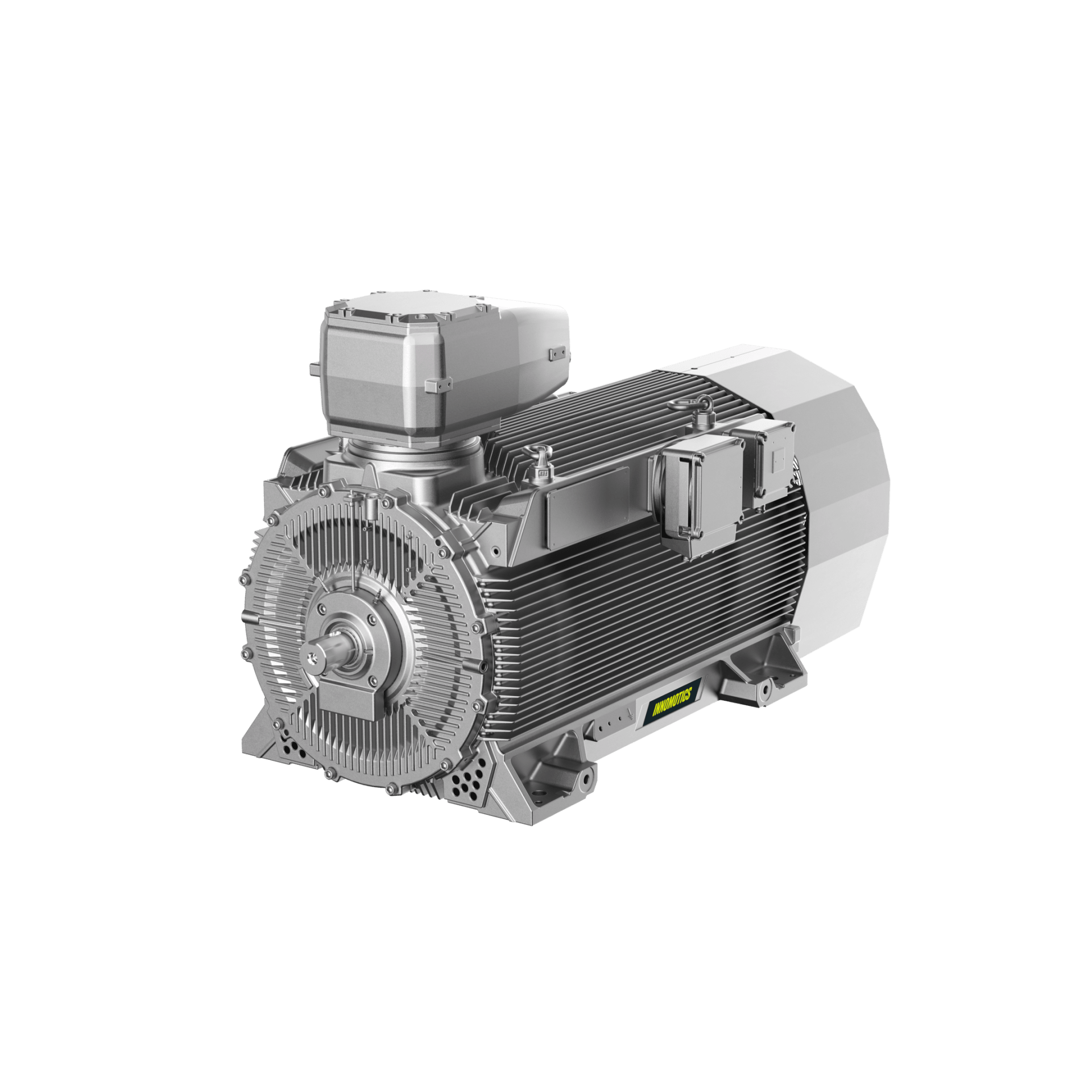

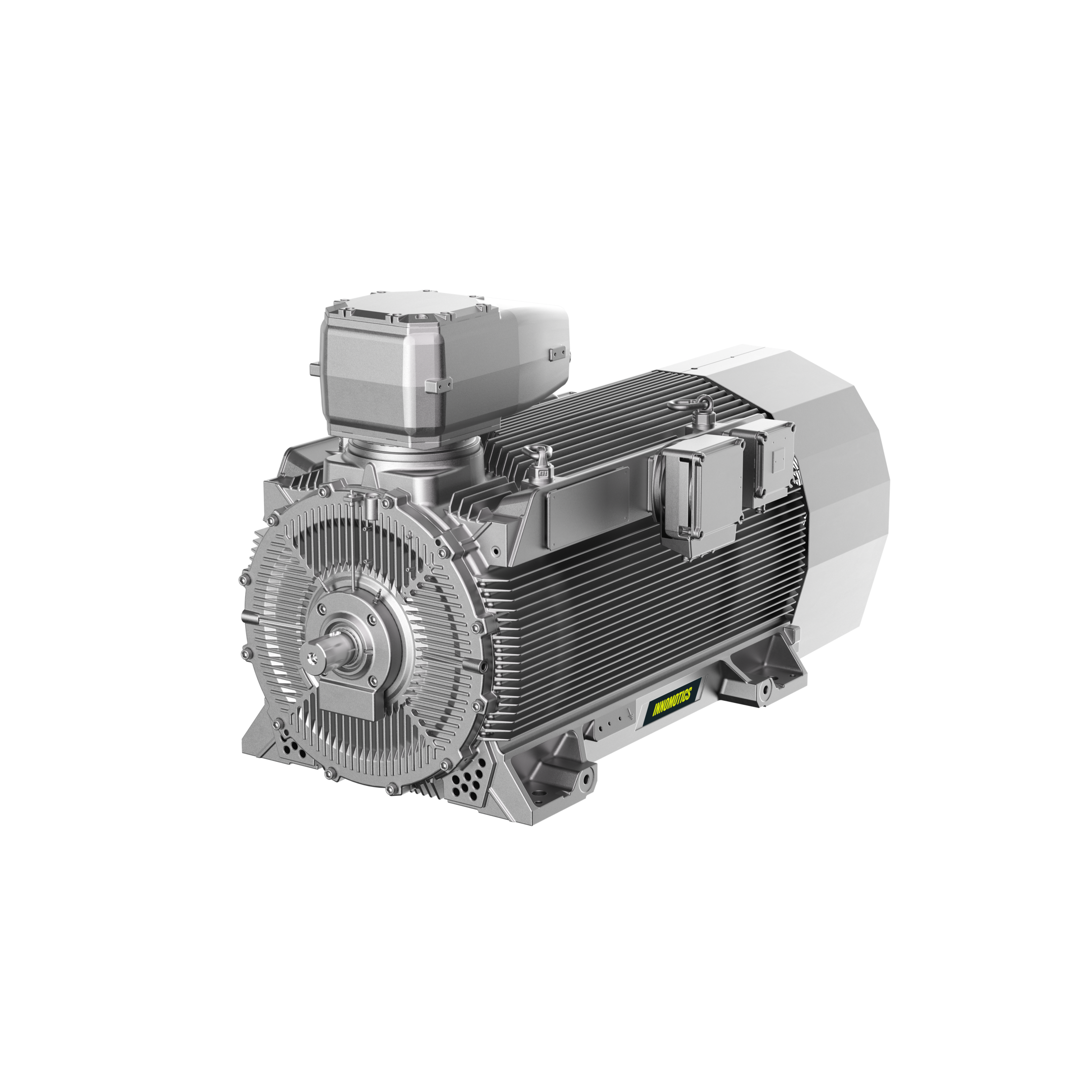

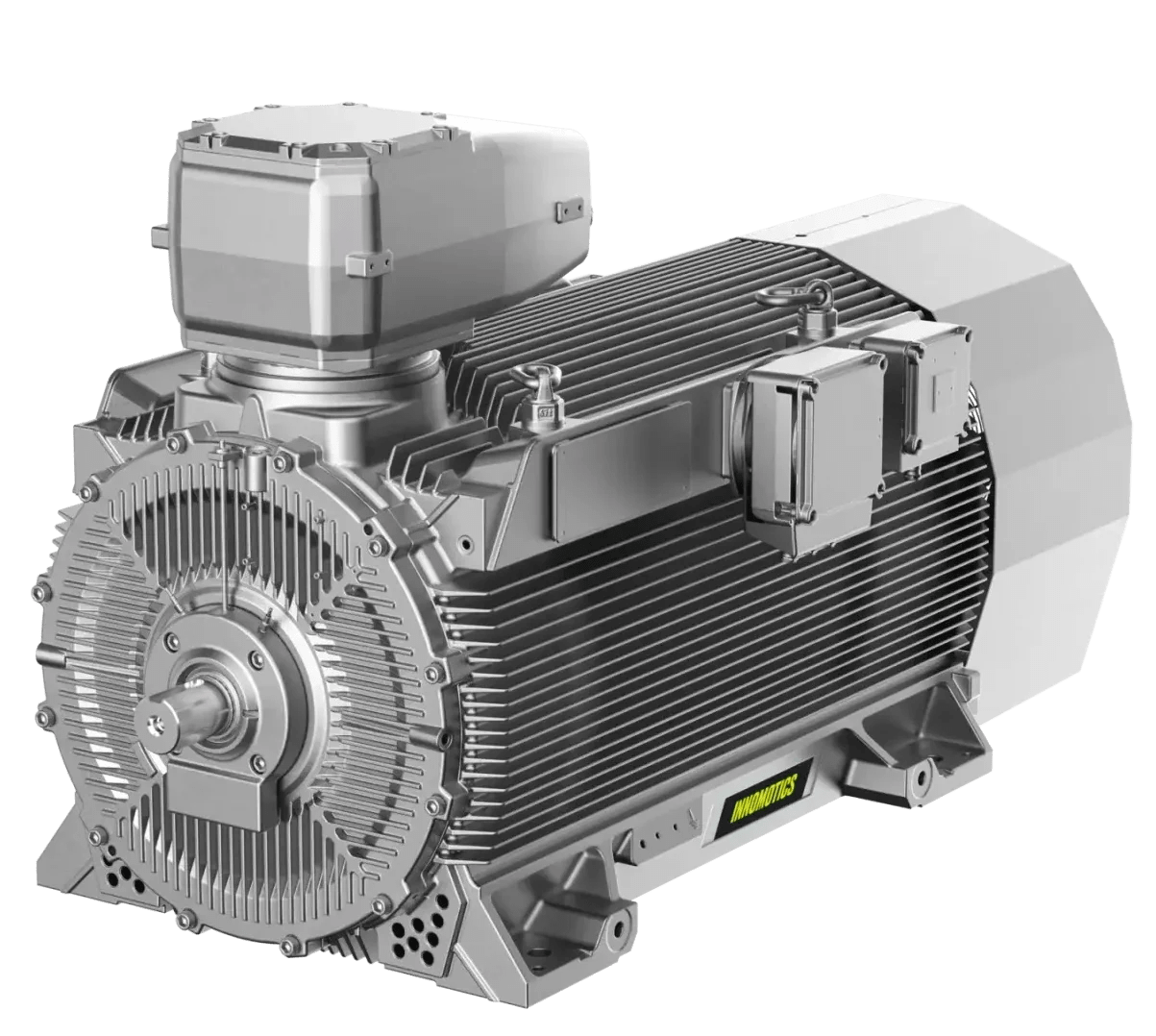

Innomotics HV C flameproof
|
Type of motor
|
Asynchronous
|
|
Power range
|
up to 2 MW
|
|
Voltage range
|
380 – 690 V
|
|
Shaft height
|
400 – 560 mm
|
|
Number of poles
|
2 – 8
|
|
Operating mode
|
VSD / DOL
|

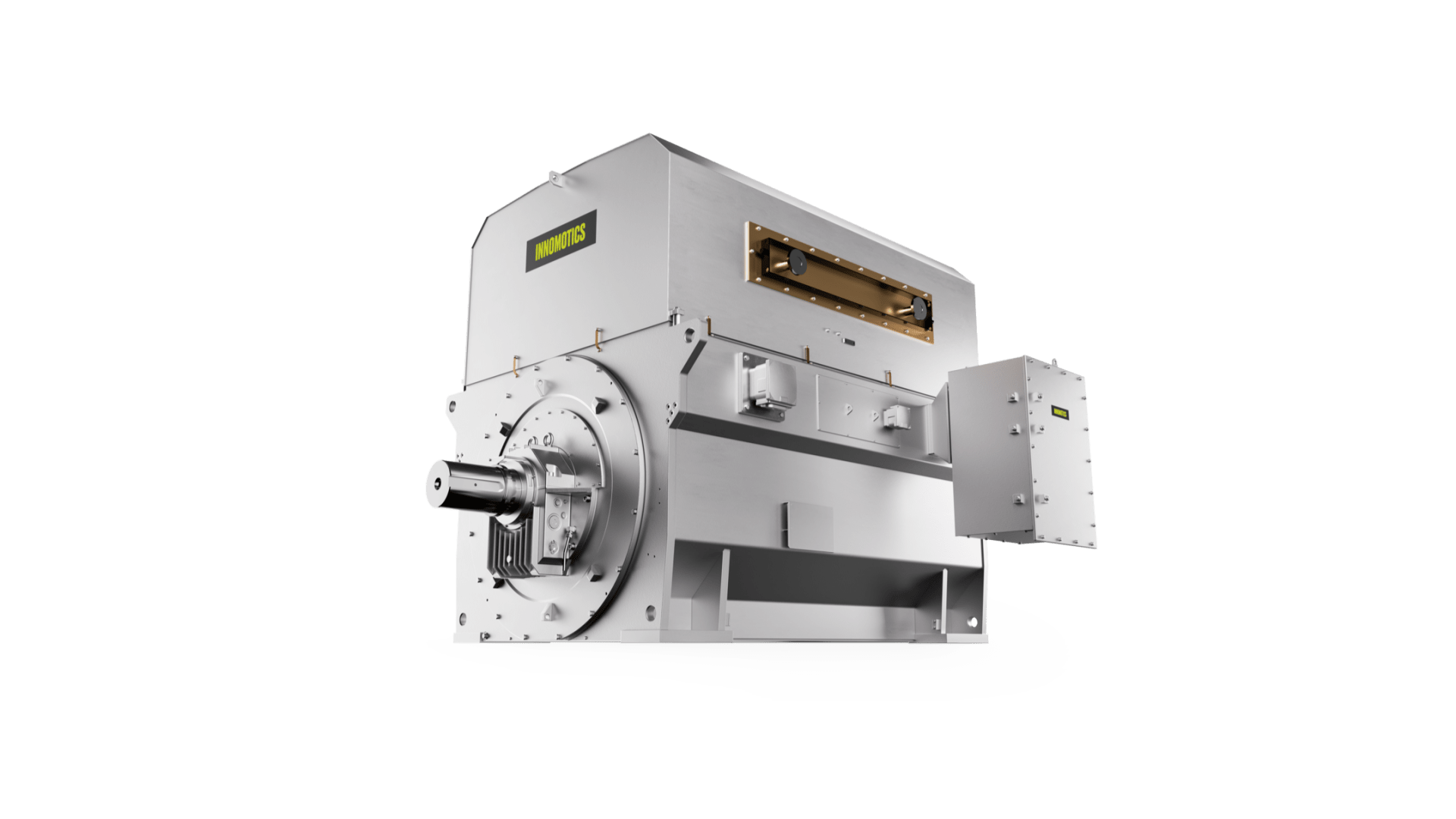

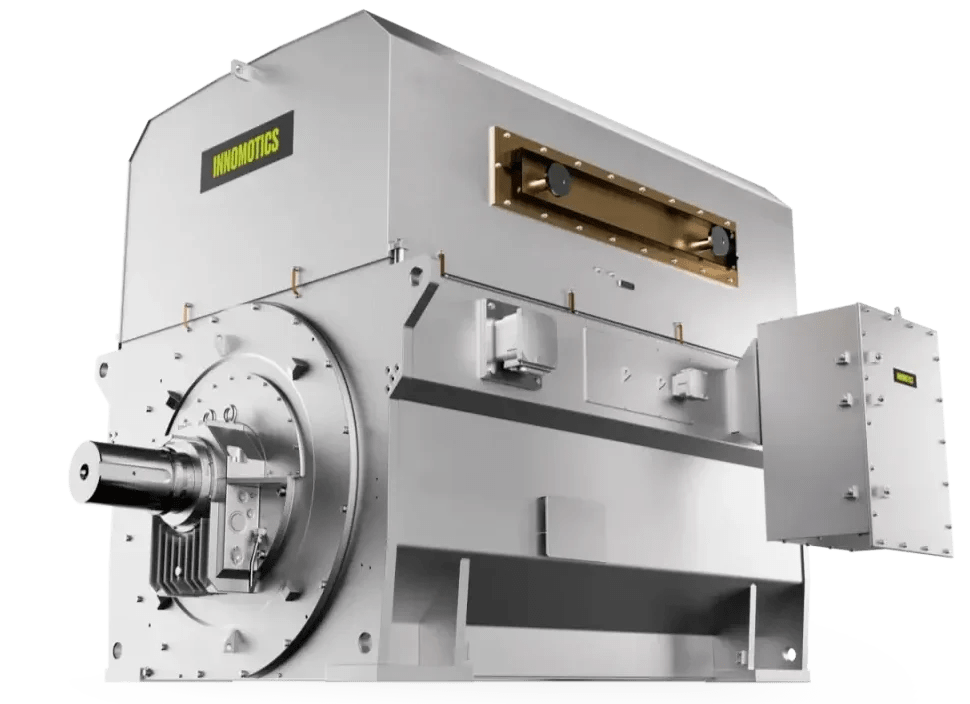

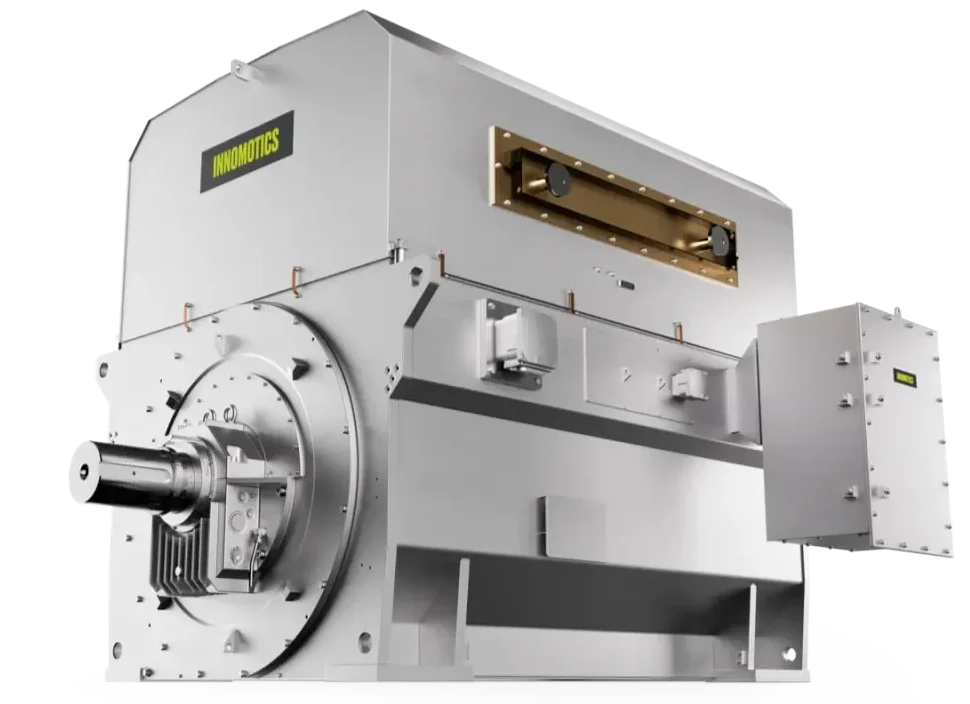

Innomotics HV M
|
Type of motor
|
Asynchronous
|
|
Power range
|
250 - 5300 kW
|
|
Voltage range
|
380 – 690 V
|
|
Shaft height
|
405 – 710 mm
|
|
Number of poles
|
4 – 8
|
|
Operating mode
|
VSD / DOL
|

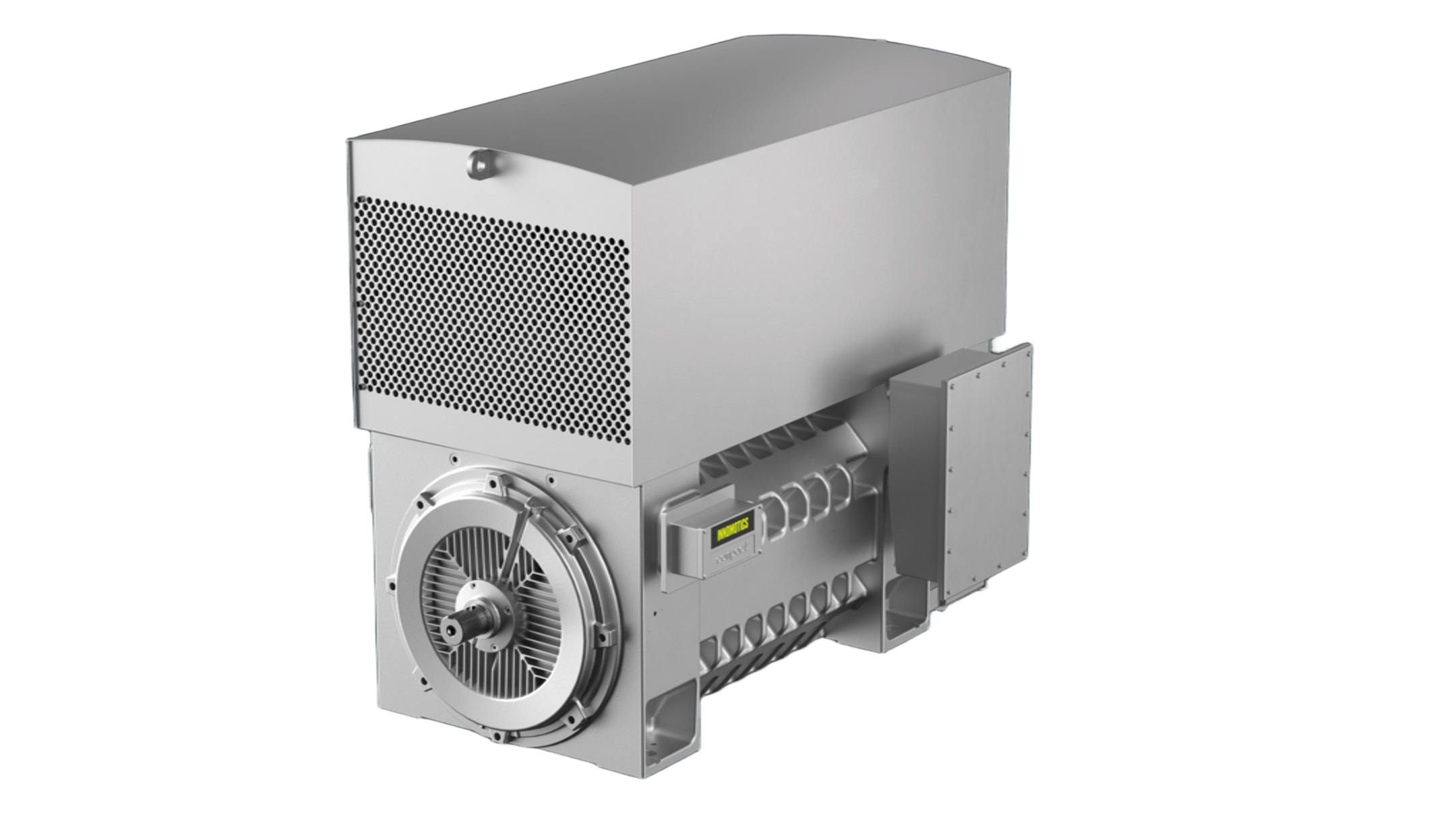

Innomotics HV series A-compact PLUS
|
Type of motor
|
Asynchronous
|
|
Power range
|
up to 1.5 -3.5 MW
|
|
Voltage range
|
675 V 50 / 60 Hz
|
|
Shaft height
|
450 – 630 mm
|
|
Number of poles
|
4 – 8
|
|
Operating mode
|
VSD / DOL
|
