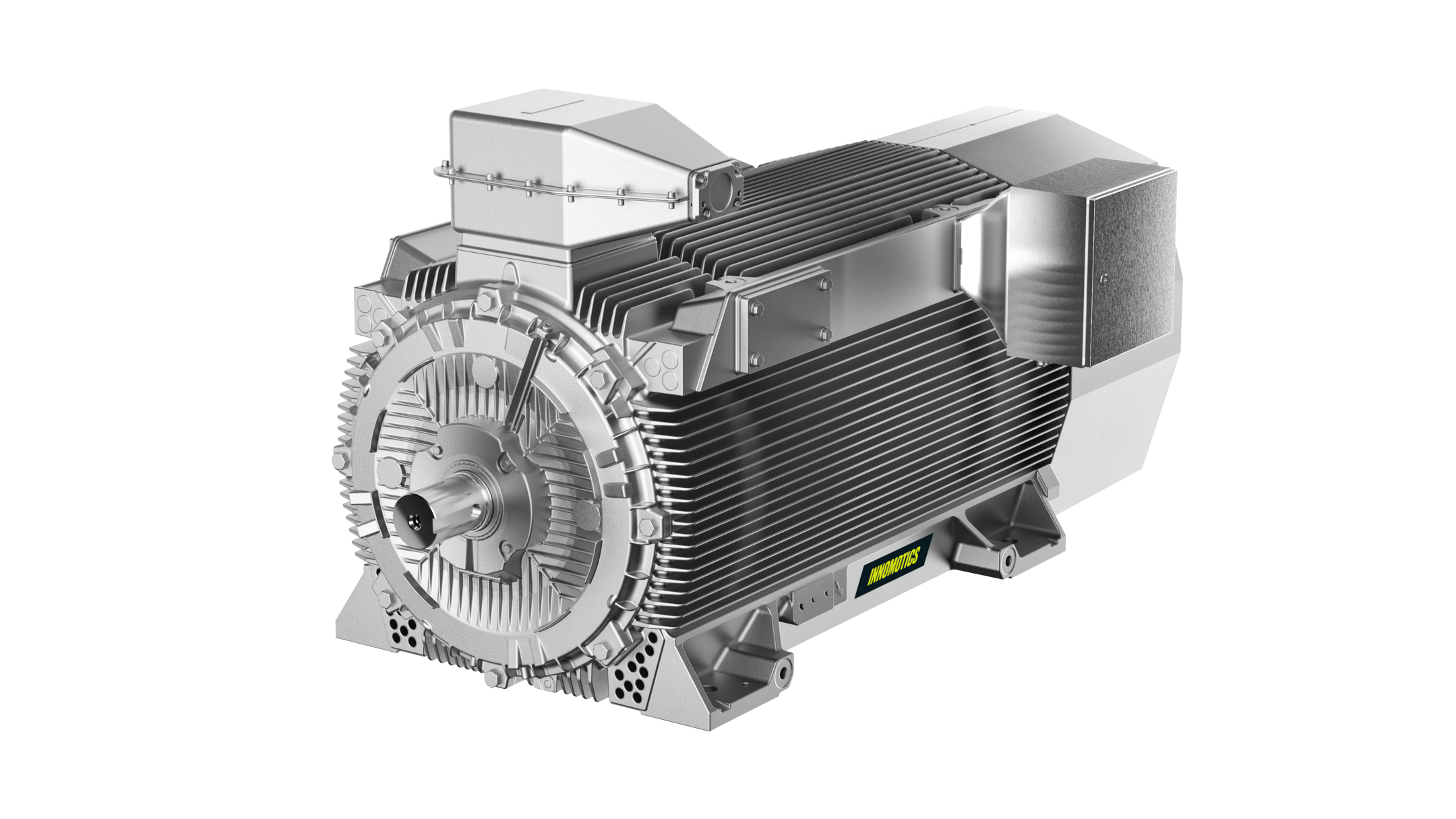

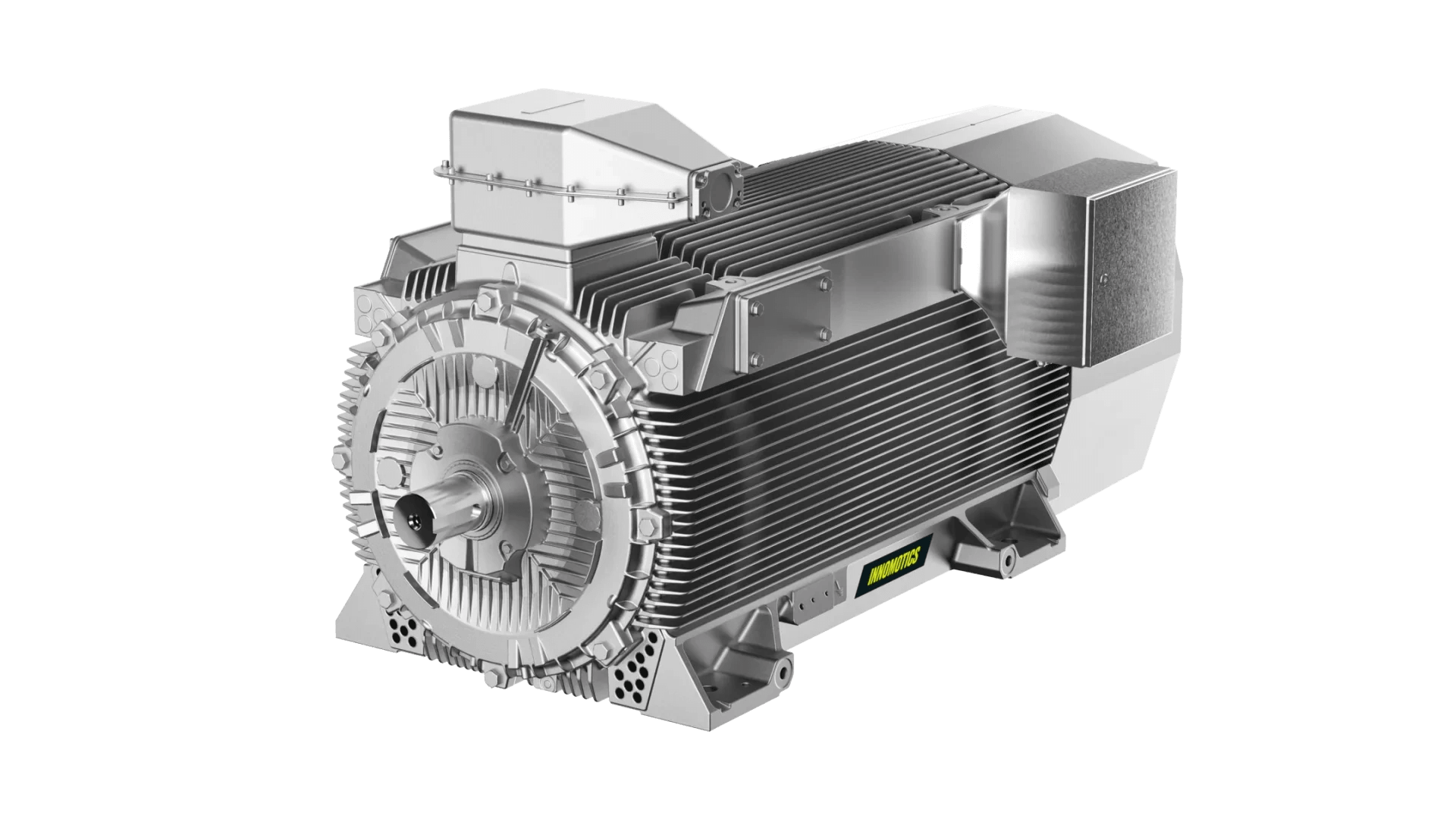

The revolutionary cooling-system for air-cooled versions of Innomotics HV C combines a rib-cooled enclosure with integrated tube cooling.
Innomotics HV C air-cooled motor is a technological marvel, boasting an ultra-compact and extremely reliable design. It’s specifically engineered for non-hazardous areas, including Ex zones 2 and 22 (Ex ec and Ex tc), making it a versatile choice for a variety of industrial applications. This motor stands out with its impressive power density, which is 10-15% higher than other motors of the same size. This makes it not only a space-efficient solution but also a powerhouse in terms of performance.
One of the key features of the Innomotics HV C motor is its innovative rib and tube cooling concept. This advanced cooling mechanism ensures optimal thermal management, enhancing the motor’s efficiency and longevity. By effectively dissipating heat, the motor can operate under demanding conditions without compromising its reliability or performance. This makes it an ideal choice for industries that require consistent and robust motor performance.
Moreover, the Innomotics HV C motor is designed with a vibration-optimized concept. This means that it can operate smoothly with minimal vibration, reducing wear and tear on the motor and connected machinery. The reduced vibration also contributes to a quieter operational environment, which can be crucial in settings where noise control is important.
Flexibility is another standout feature of this motor. Its design allows for seamless integration into various plants and industrial applications. Whether it’s used in manufacturing, processing, or other industrial operations, the Innomotics HV C motor can be adapted to meet specific requirements. This versatility is further enhanced by its compliance with Ex ec and Ex tc standards, ensuring safe operation in potentially explosive environments.
In summary, the Innomotics HV C air-cooled motor combines ultra-compact design, high power density, innovative cooling, and vibration-optimized features to deliver unmatched performance and reliability. Its ability to integrate flexibly into various industrial settings makes it a highly valuable asset for modern industry applications.
Technical data overview
|
Type of motor |
Asynchronous |
|
Power range |
Up to 2.5 MW |
|
Shaft heights |
315 – 560 mm |
|
Number of poles |
2 – 8 |
|
Rated voltage |
2 – 11 kV (also available in low voltage version) |
|
Degree of protection |
IP55 – IP66 |
|
Cooling method |
IC411, IC416 |
|
Operating mode |
VSD / DOL |
|
Explosion protection |
Ex ec, Ex tb |
