High voltage motors are essential for challenging industrial applications that require reliable and powerful performance. These motors are designed to handle the toughest conditions and deliver consistent results, making them indispensable for heavy-duty operations.

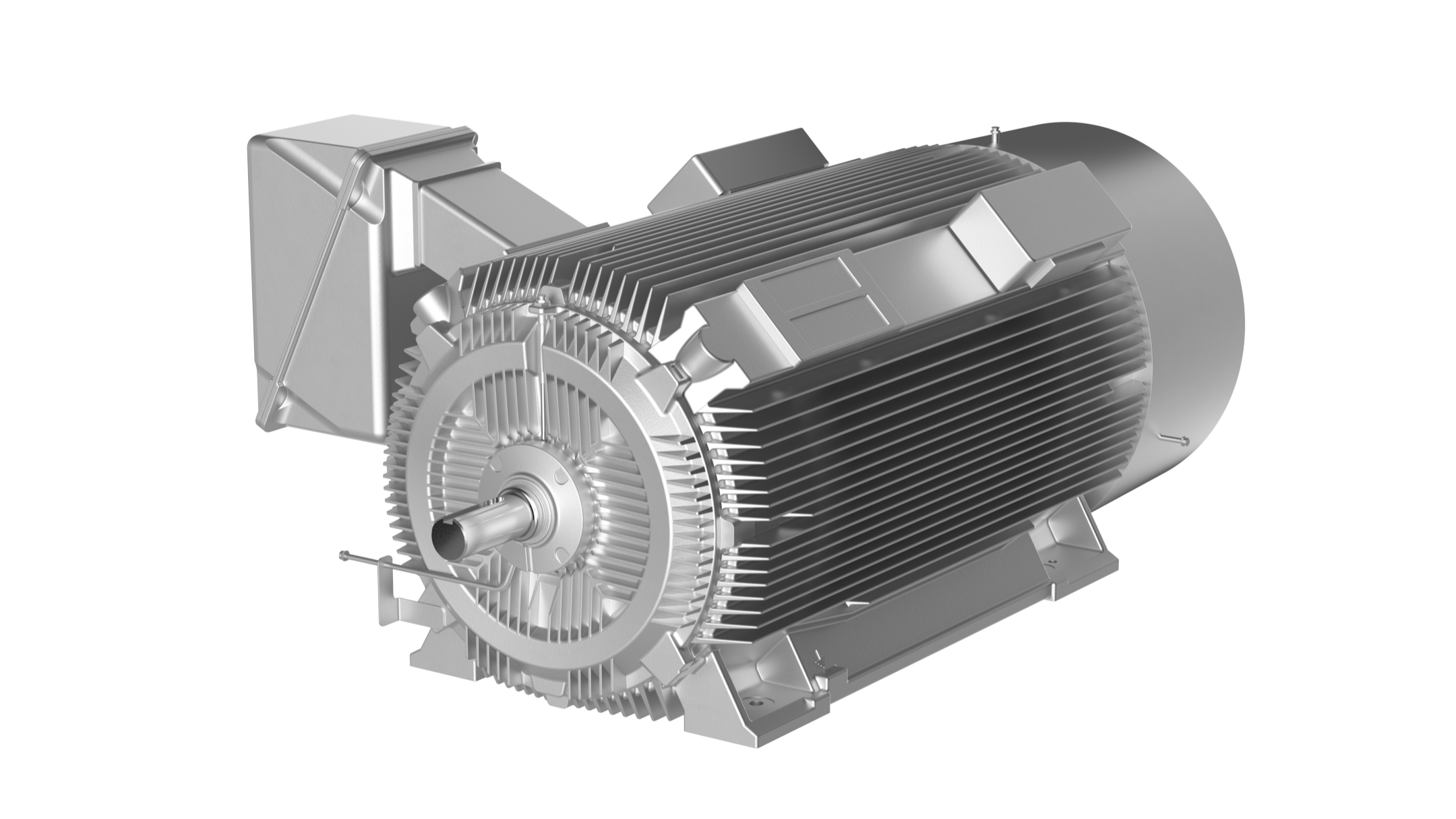

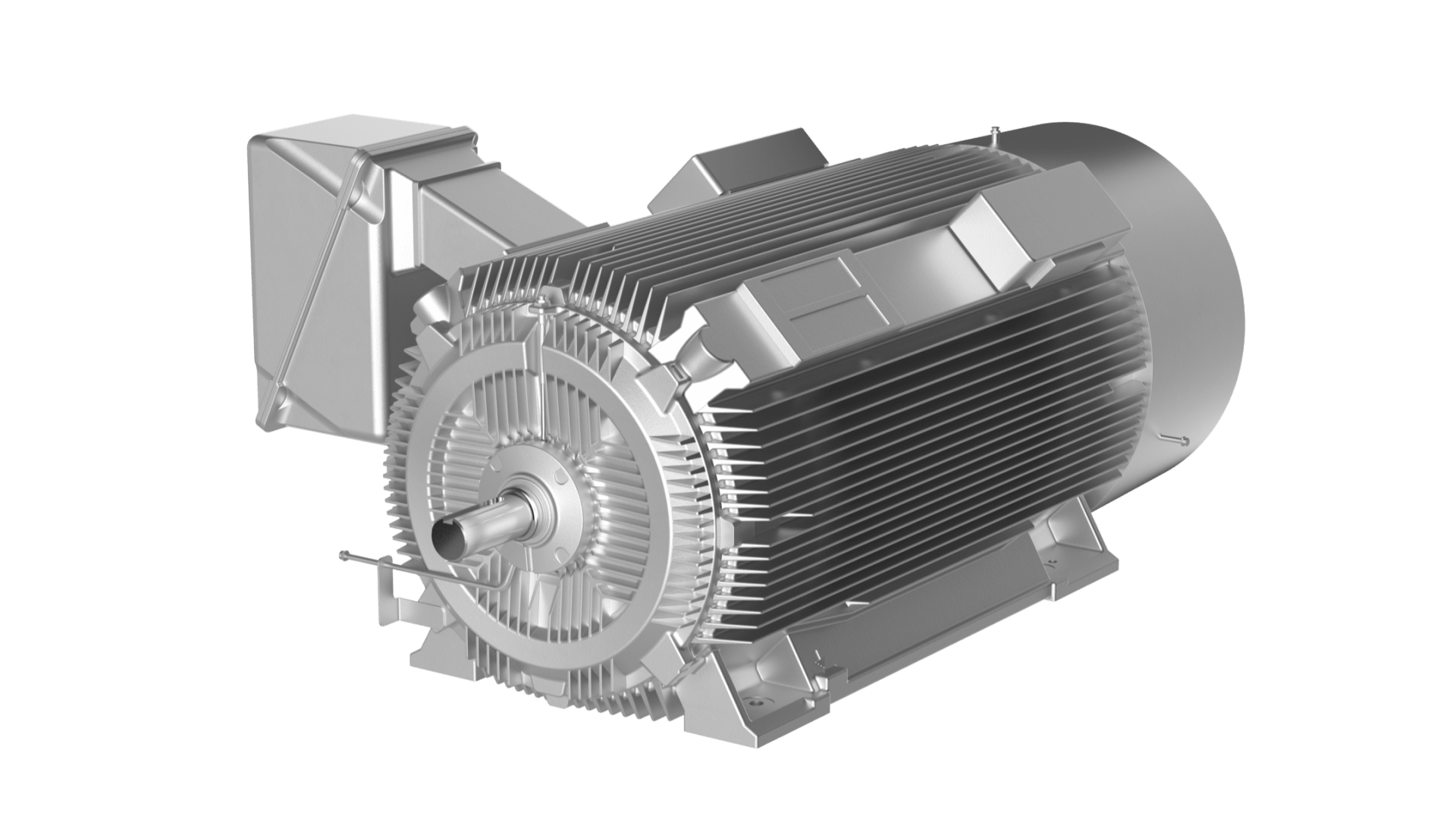

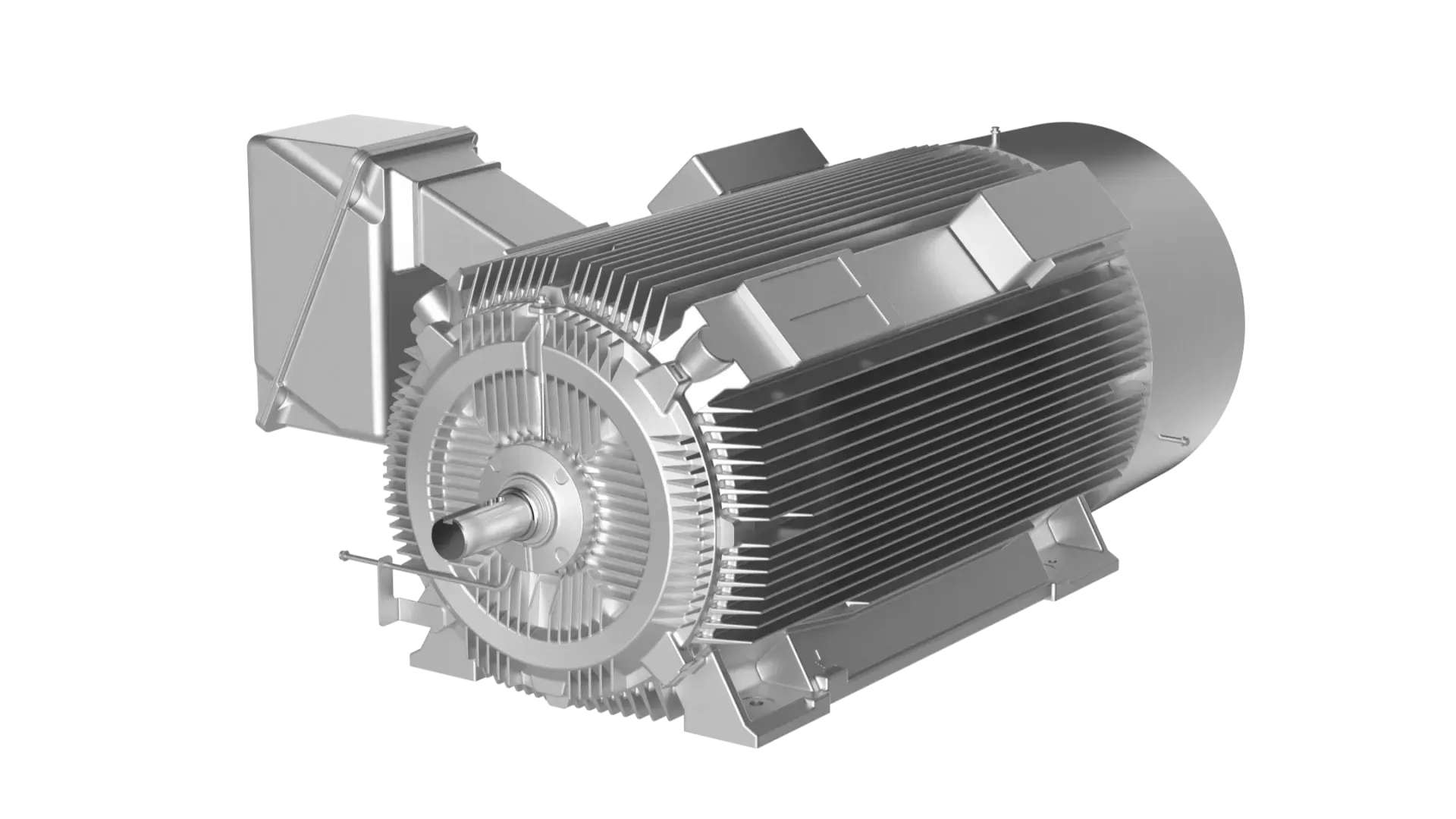

Horizontal AC induction motors in this category can deliver up to 20 MW (27,500 HP) of power. This makes them ideal for applications that require substantial power, such as large pumps, compressors, and fans. These motors can handle significant loads and provide the necessary torque to drive heavy machinery efficiently. With voltage ranges from 460 to 13,200 V, they are versatile and can be adapted to various industrial requirements.
Vertical AC motors, on the other hand, can deliver up to 6 MW (8,000 HP) of power. These motors are suitable for applications that need a more compact design while still requiring significant power output. They are often used in vertical pump applications, where space constraints necessitate a more vertically oriented motor. Like their horizontal counterparts, these vertical AC motors are designed to operate within the same voltage range of 460 to 13,200 V, ensuring they can be integrated into different industrial systems seamlessly.
Both horizontal and vertical high voltage motors are engineered to withstand harsh environments and demanding conditions. Their robust construction ensures long-term reliability, reducing the need for frequent maintenance and minimizing downtime. These motors are also designed with efficiency in mind, helping to reduce energy consumption and operational costs.
In summary, high voltage motors for challenging applications offer powerful and reliable solutions for heavy industrial operations. With horizontal AC induction motors delivering up to 20 MW and vertical AC motors delivering up to 6 MW, and voltage ranges from 460 to 13,200 V, these motors are versatile and suitable for a wide range of industrial applications. Their robust design ensures durability and efficiency, making them a valuable asset in any heavy-duty industrial setting.
Technical data overview
| Type of motor | Asynchronous (Induction) |
| Shaft height | NEMA 500 – SH800 frames |
| Power range | up to 20 MW (27,500 HP) |
| No. of poles | 2 – 8 poles (other pole numbers on request) |
| Voltage range | 380 V – 13.2 kV |
| Degree of protection | IP23, IP24, IP54, IP55 |
| Cooling type | IC01, IC81W, IC411, IC416, IC611, IC616, IC666 |
| Efficiency | up to 98% |
| Explosion protection | Class 1, Division 2 optional |
| Operating mode | VSD / DOL |
