SITRANS LH100
Converts level-proportional hydrostatic pressure into a standard 4 – 20 mA signal for basins, containers, canals and dams.
Siemens SITRANS LH100
Product Summary

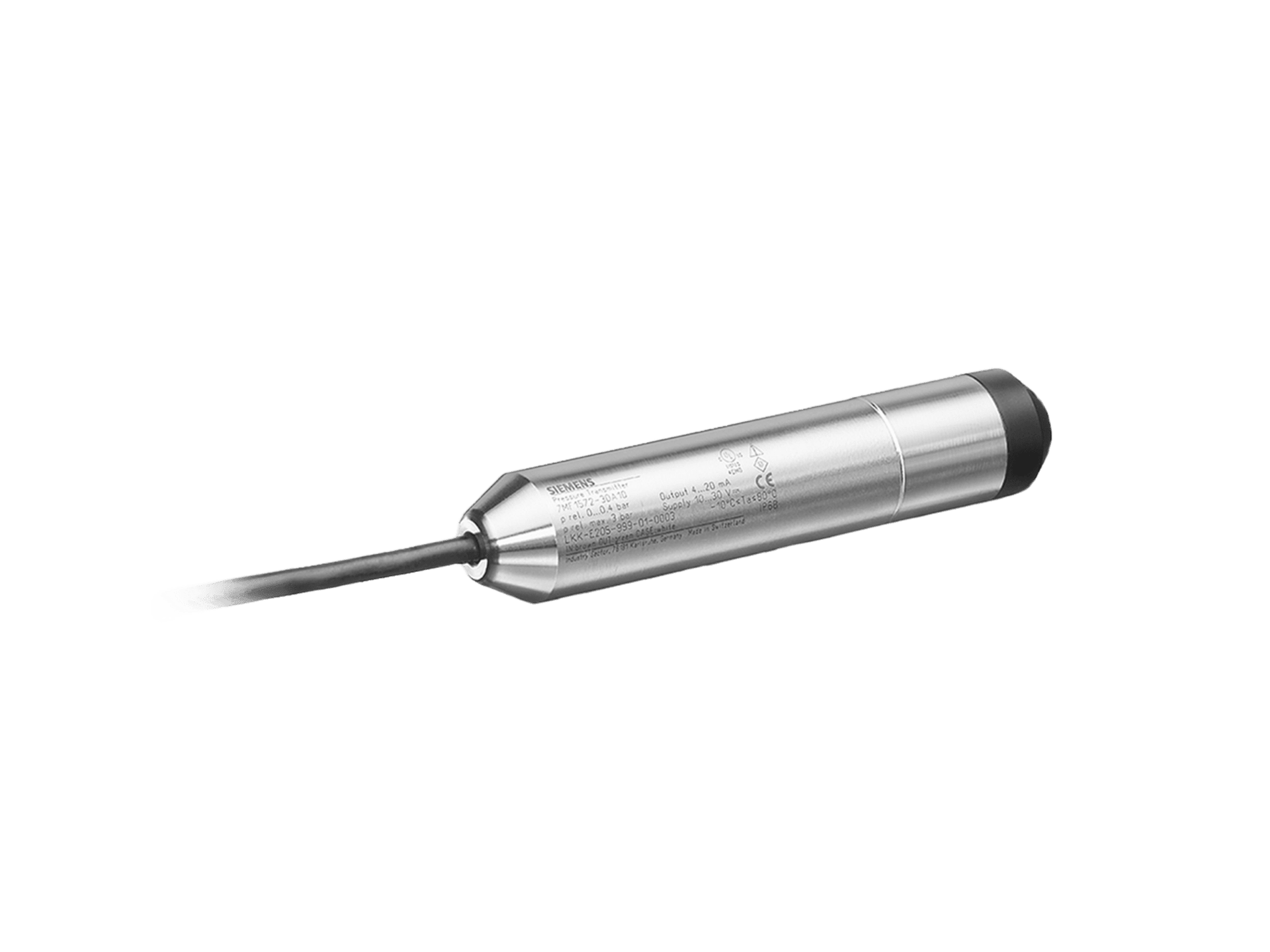

The pressure transmitter SITRANS LH100 is a well probe and converts the level-proportional hydrostatic pressure into a standard signal of 4 – 20 mA. It measures levels in basins, containers, canals and dams.
It has a stainless steel housing and a piezoresistive sensor with a ceramic membrane and is available for a wide range of measuring ranges and, if required, with explosion-protection.
Key Benefits
Built for reliable submersible level measurement in wells, tanks and open water
Easy Installation & Use
Compact design and corrosion-resistant material make the probe easy to install and use.
Safe Application
A vent pipe in the connection cable prevents condensate formation.
Long Service Life
A protective cap shields the measuring diaphragm against external influences.
Technical Specifications
Comprehensive parameters and system integration options
| Parameter | Technical Specification |
|---|---|
| Accuracy | 0,3 % |
| Long-Term Stability | 0,25 % / 12 months |
| Measuring Range | 0 – 3 mH2O to 0 – 20 mH2O |
| Housing | 316L Stainless Steel (Ø 23.4 mm), Housing IP68 rated |
| Cable Length | Standard 10, 20, or 30 m, special length up to 50 m are possible |
| Certificates / Approvals | Explosion-protected version according to IEC Ex and ATEX |
| Application | Shipbuilding, water / wastewater supply and unpressurised / open tanks and wells |
