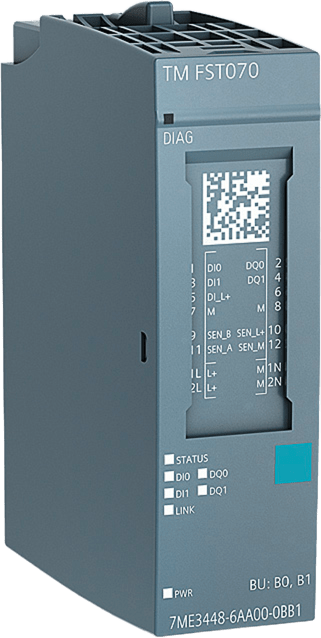

SITRANS FST070



The SITRANS FST070 technology module is an ultrasonic flowmeter for the SIMATIC ET200SP distributed I/O. With the SITRANS FST070, data can be processed in real-time and all measurement and status data of the ultrasonic flowmeter can be visualized. It also enables direct integration with drivers and user interfaces into the Siemens TIA Portal and the SIMATIC PCS 7 process control system.

Benefits

SITRANS FST070: flexible, versatile, practical
  1.  Direct integration into the SIMATIC world (no transmitter needed)
  2.  100 Hz – real-time communication
  3.  TIA, SIMATIC PCS 7 complete solution incl. faceplates made by Siemens

Technical specifications

Technology Modul

 For SIMATIC ET 200SP Profinet
Base unit ET 200SP

 BU 20 type B1
Supported control

 SSIMATIC PCS7 V9.1 SP2 or higher

TIA Portal V17 or higher

SIMATIC STEP 7 V5.6 SP4 or higher
Outputs

 2 individually programmable outputs
Inputs

 2 individually programmable inputs
Communication

 Profinet via SIMATIC ET 200SP
Protection class

 IP 20
Environmental temperature

 -13° F…122 °F Vertical (140°F)
Approvals (standard version)

 CE

cULus
EAC

Tick

KCC

ROHS
Approvals (Ex version)

 ATEX II 3 G Ex ec IIC T.. Gc

IECEx Ex ec IIC T4
FM Class I, DIV 2, Group A.B.C.D

With barrier SITRANS I300 also for ATEX zone 1
Power

 24V, Class 2, max. 0.5 A
