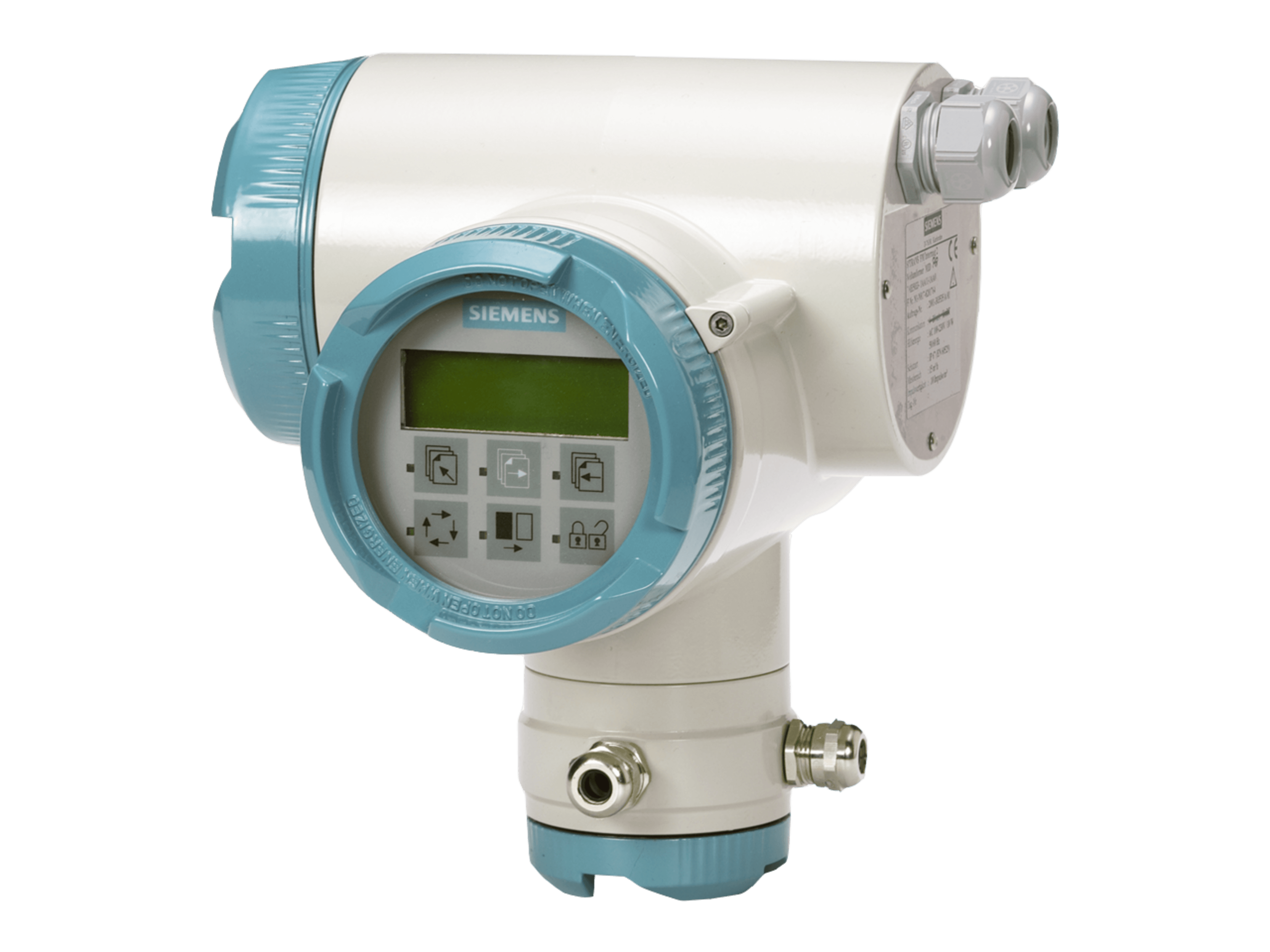

SITRANS FM MAG 6000 I / 6000 I Ex de

Posted on by
Home >> Process Instrument >> Flow Measurement >> Electromagnetic >> Transmitters

     The SITRANS FM MAG 6000 I and the SITRANS FM MAG 6000 I Ex de are microprocessor-based transmitters which can be used in the harshest industrial environments.

Benefits

  • Built-in advanced batch control
  • Robust aluminum two-chamber die-cast housing suitable for potentially explosive applications
  • Built-in dosing function
  • Added communication module for easy integration with your application, providing a fully integrated solution throughout the plant
  • EMC requirements as well as high functional safety and system availability due to uniform operating concept according to NAMUR guidelines are fulfilled
  • Error behavior according to NE43 for 4 … 20mA output selectable
  • Improved troubleshooting and testing of the instrument through comprehensive diagnostics and service menu
  • SENSORPROM technology allows transmitter replacement and automatic reprogramming of a new transmitter without loss of data or accuracy
  • Keypad and alphanumeric display are intrinsically safe and programmable directly in the hazardous area – ATEX and FM certified

Technical Overview

Accuracy 0.2 % ±1 mm/s
Input / Output
    1 Current
    1 Pulse/Frquency
    1 Relay
Communications
    HART
    Modbus RTU
    Profibus PA/DP
    DeviceNet
    Foundation Fieldbus
Display Background illumination with alphanumeric text, 3 x 20 characters
Enclosure IP67 (NEMA 4x/6)
Power Supply
    24 V d.c.
    115-230 V a.c.
    18-30 V d.c.
Ambient Temperature From -20 to 60 oC (-4 to +140 oF)
Approvals
    CE
    C-tick
    FM Class 1, div 2
    FM Class 1, zone 2
    CSA Class 1, div 2
    CSA Class 1, zone 2
Ex-Approvals
    IEC EX DE[ia] [ib] ia IIC T6 Gb Ex tDa 21 IP67
    ATEX II 2(1)(2) GD EEx de [ia] ia [ib] IIC T6
NAMUR NE21, NE32, NE43, NE53, NE70, NE131
Application General Process Industry, Chemical Industry

Catalog :

SITRANS FM MAG 6000 I / 6000 I EX de
