Technical Overview
Our motors comply with European Directive 2014/34/EU (ATEX): As an alternative to the European directive, certificates for IECEx (Australia), EACEx (Eurasian) and CCCEx (China) are also available.
| Hazardous Zone | 1 | 1 | 2 | 21 | 22 |
| Type of Protection | Ex db | Ex eb | Ex ec | Ex tb | Ex tc |
| Power Range | 0,25 - 460 kW | 0,12 - 165 kW | 0,09 - 1000 kW | ||
| Voltage | 50Hz/60Hz: 230 - 690 V | ||||
| Shaft Height | 71 - 355 mm | 63 - 315 mm | 63 - 450 mm | ||
| No. of Poles | 2 - 8 | 2 - 8 | 2 - 8 | ||
| Degree of Protection | IP55 to IP66 | IP65 to IP66 | IP55 to IP66 | ||
| Efficiency class | IE3 | IE2, IE3, IE4 (only 1MB5) | |||
Recommended converters: SINAMICS* G and S converter series.

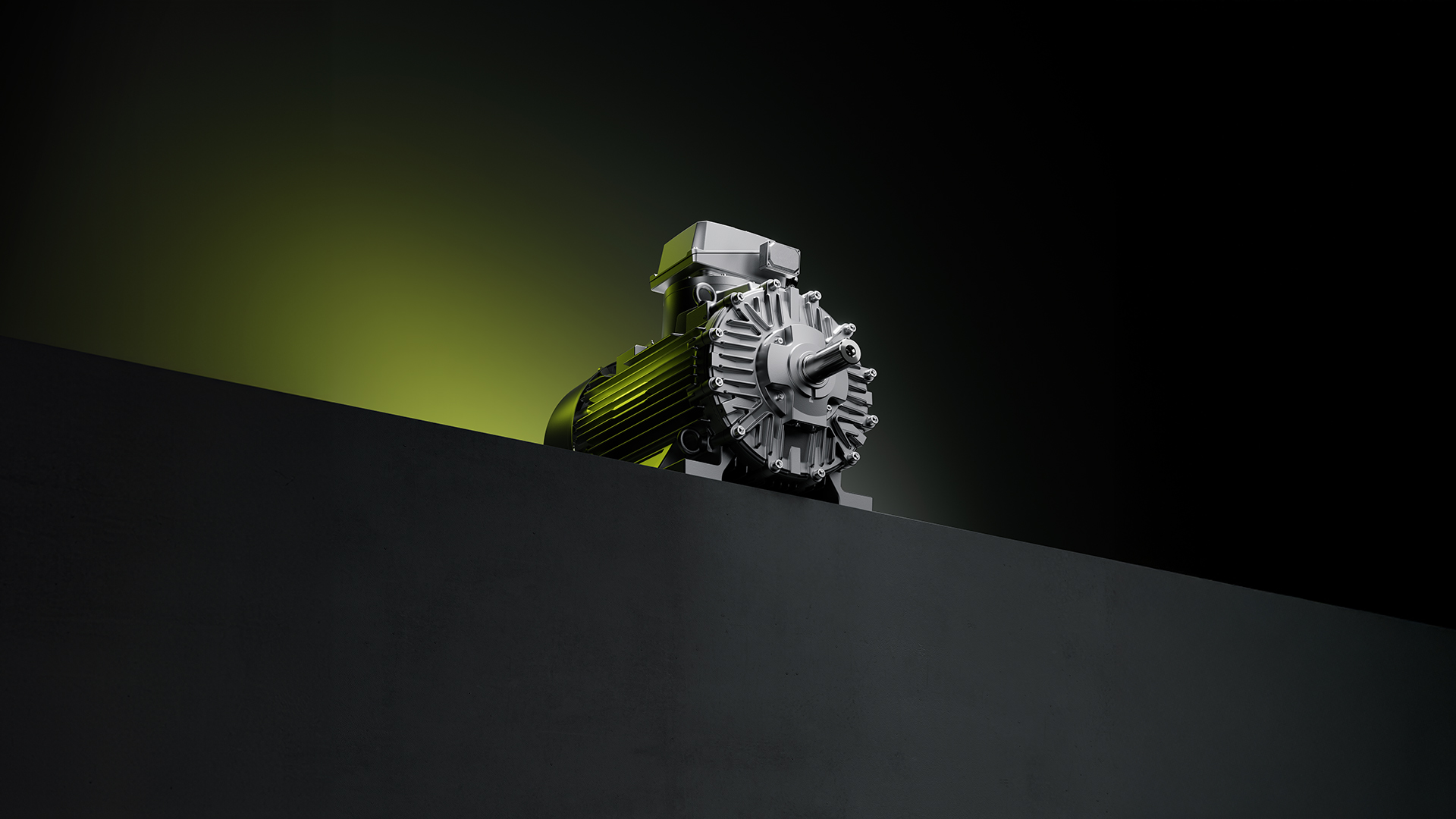

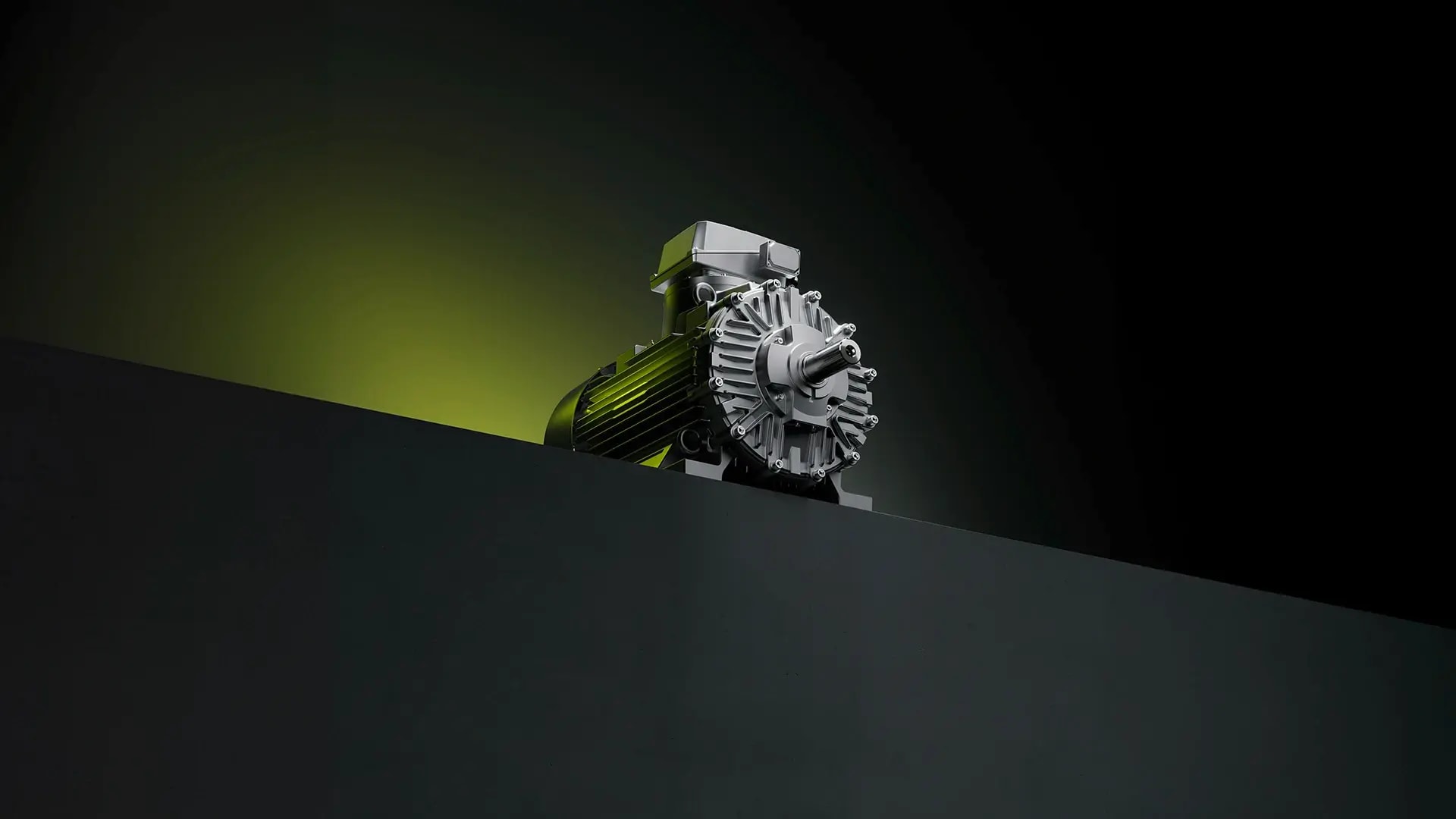

Our robust explosion proof low voltage motors run for an enormously long time and with absolute reliability even under the most extreme conditions - both on the mains and on all available converters. Our Ex motor program is complete: for all requirements with maximum safety and maximum efficiency in operation. For exceptional requirements, we also offer drive solutions with double protection.
