SITRANS TS500

Posted on by
Home >> Process Instrument >> Temperature Measurement

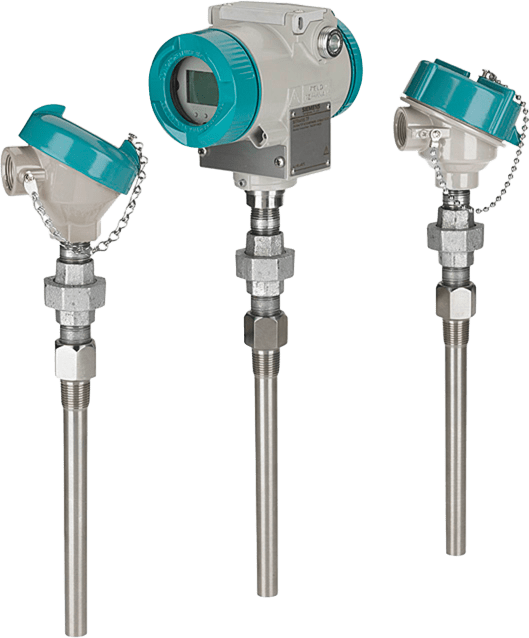

      SITRANS TS500 are temperature sensors for a wide range of measurement applications – from simple to complex, e.g. for harsh environments. The modular design of the system with a protective tube made of tubular or solid material, an extension, a connection head, an optional transmitter or a display enables the use of standard components. Intrinsically safe or flameproof designs are also available.

Technical Overview

Output
    Direct Sensor Signal
    4..20mA (TH100/TH200)
    HART (TH320)
    PA (TH420)
    FF (TH420)
Max Operation Temperature
    Measuring Point
      Connection Head
      PT100 Basic : -50...+400 oC (-58...+752 oF)
      PT100 Extended : -196...+600 oC (-321...+1112 oF)
      Thermocouple : -40...+1250 oC (-40...+2282 oF) (Depending on type of TC and Thermowell)
      -40...+100 oC (+85 oC with Transmitter)
    Ingress Protection IP54-68, depending on the type of connection head and cable gland
    Approvals
      General Purpose (FM, CSA)
      for use in hazardous locations ATEX, IECEx, cCSAus, NEPSI, EAC, KOSHA
      for use in marine applications DNV

    Benefits

    • Exchangeable during operation
    • Wide application range due to modular design
    • Explosion protection by the ignition protection types, intrinsically safe Ex i (IS), increased safety Ex e (NI) or flameproof enclosure Ex d (XP) resp dust protection by means of enclosure Ex t (DIP)
    • Certificates for major markets
    • With optional local indicator and operation

    Catalog :

    SITRANS TS500
