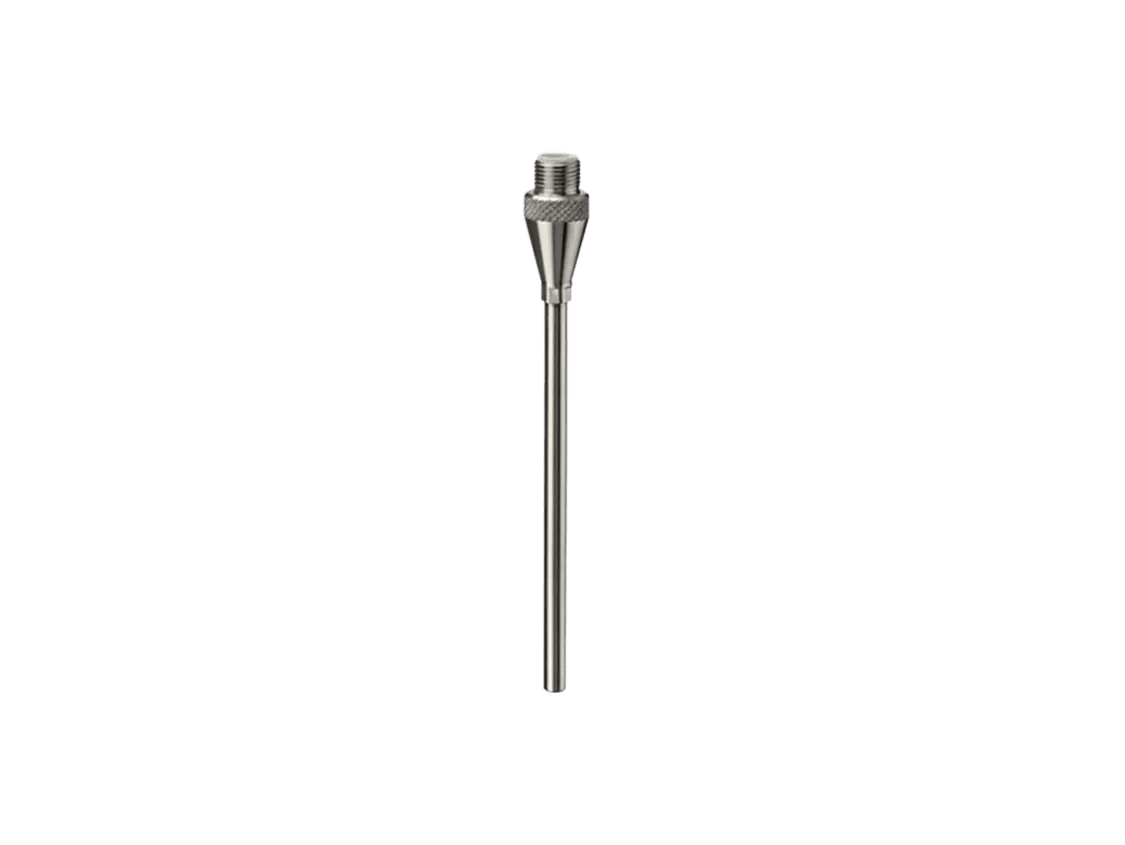

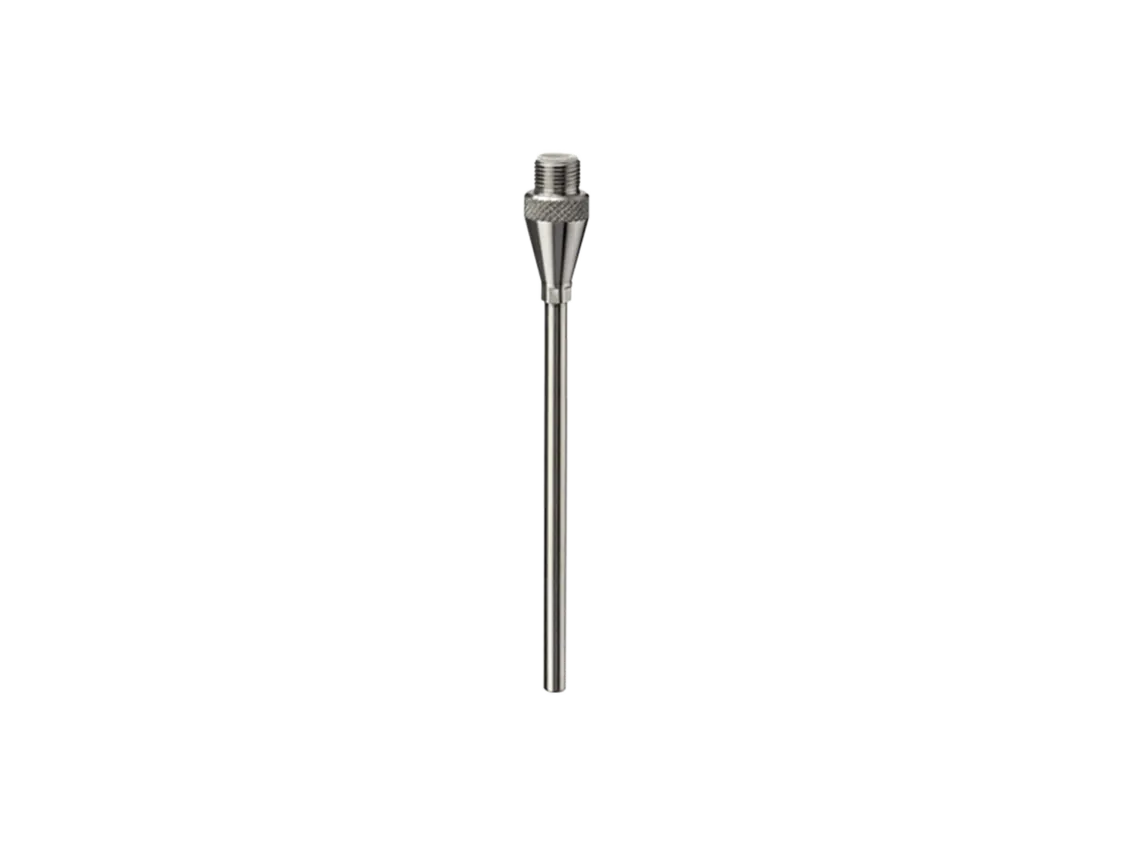

SITRANS TS200
Flexible MIC-based temperature sensor line, installable up to Zone 0 without an additional thermowell.
Siemens SITRANS TS200
Product Summary
The construction of the SITRANS TS200 temperature sensor line is based on mineral insulated cable (MIC) and supports a wide range of applications.
Due to compression fittings or soldering nipples the installation is simple and flexible and is possible up to Zone 0 without the need of an additional thermowell.
Key Benefits
Simple, versatile and safe temperature measurement for a wide range of applications
Simple Mounting
Compression fittings or soldering nipples enable a fast commissioning.
Universal & Customizable
The sensor line is designed to serve a wide range of applications, built on a modular platform offering variety.
Safe & Certified
Explosion protection by intrinsic safety Ex i (IS) even in Zone 0, with certificates for major markets.
Technical Specifications
Comprehensive parameters and system integration options
| Parameter | Technical Specification |
|---|---|
| Output | Direct sensor signal |
| Max. Operating Temperature (Measuring Point) |
|
| Max. Operating Temperature (Cable End) | -40 … +80 °C (-40 … +176 °F) |
| Ingress Protection | IP54 (depending on connector type) |
| Approvals | ATEX, IECEx, cCSAus, EAC, NEPSI, EACEx |
Download Siemens SITRANS TS200 Catalog
Get detailed ordering datasheets, dimension diagrams, and full engineering technical guidelines.
