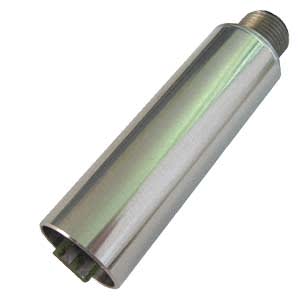

SITRANS TH100 Slim is particularly suited for the production of compact thermometers with integrated transmitter. Its cylindrical stainless steel enclosure is simply welded to the main body of the compact thermometer. Its compact design makes the SITRANS TH100 Slim the ideal solution for manufacturers from a wide variety of industries. For the parameterization, the SIPROM T software is used in combination with the modem for SITRANS TH100/TH200.
Benefits
- Transmitter in 2-wire system with M12 device plug for mounting on compact thermometer.
- Solution for easy and space-saving temperature measurements in a variety of industries.
- Programmable; as a result, the sensor connection, measuring range and much more are programmable.
Application
The SITRANS TH100 Slim transmitter can be used in combination with Pt100 compact resistance thermometers for temperature measurement in all industries. Thanks to its compact design, it can be mounted to all kinds of designs.
The output signal is a load-independent direct current of 4 to 20 mA which is proportional to the temperature.
Parameterization is implemented over the PC using the parameterization software SIPROM T and the modem for SITRANS TH100/TH200. If you already have a “Modem for SITRANS TK” (article number 7NG3190-6KB), you can continue to use this for parameterization of the SITRANS TH100.
Function
Mode of operation
The measured signal supplied by a Pt100 resistance thermometer (2, 3 or 4-wire connection) is amplified in the input stage. The voltage, which is proportional to the input variable, is then converted into digital signals by a multiplexer in an analog-to-digital converter. They are converted in the microcontroller in accordance with the sensor characteristic and additional parameters (measuring range, damping, ambient temperature, etc.).
The signal prepared in this way is converted in an analog-to-digital converter into a load-independent direct current of 4 to 20 mA.
An EMC filter protects the input and output circuits against electromagnetic interferences.
Technical specifications
|
SITRANS TH100 Slim (Pt100) |
|
|---|---|
|
Input |
Resistance thermometer |
|
Measured variable |
Temperature |
|
Input type |
Pt100 according to IEC 60751 |
|
Characteristic curve |
Temperature-linear |
|
Connection type |
2, 3, 4-wire connection |
|
Resolution |
14 bit |
|
Measuring accuracy |
< 0.25 °C (0.45 °F) |
|
Repeatability |
< 0.1 °C (0.18 °F) |
|
Measuring current |
Approx. 0.4 mA |
|
Measuring cycle |
< 0.7 s |
|
Measuring range |
-60 … +160 °C (-76 … +320 °F) |
|
Measuring span |
25 … 220 °C (45 … 396 °F) |
|
Unit |
°C or °F |
|
Offset |
Programmable: |
|
Wire resistance |
Max. 20 Ω (total from feeder and return conductor) |
|
Noise suppression |
50 and 60 Hz |
|
Output |
|
|
Output signal |
4 … 20 mA, 2-wire |
|
Auxiliary power |
8.5 … 36 V DC (30 V for Ex) |
|
Max. load |
(Uaux – 8.5 V)/0.023 A |
|
Overrange |
3.6 … 23 mA, continuously adjustable (factory setting: 3.84 … 20.5 mA) |
|
Error signal (in the event of sensor breakage) |
3.6 … 23 mA, continuously adjustable (factory setting: 3.6 mA or 22.8 mA) |
|
Damping time |
0 … 30 s |
|
Protection |
Against reverse polarity |
|
Resolution |
12 bit |
|
Accuracy at 23 °C (73.4 °F) |
< 0.1% of measuring span |
|
Temperature influence |
< 0.13%/10 °C (0.13%/18 °F) |
|
Effect of auxiliary power |
< 0.02% of measuring span/V |
|
Effect of load impedance |
< 0.055% of max. measuring span/100 Ω |
|
Long-term drift |
|
|
Ambient conditions |
|
|
Ambient temperature range |
-40 … +85 °C (-40 … +185 °F) |
|
Storage temperature range |
-40 … +85 °C (-40 … +185 °F) |
|
Relative humidity |
98%, with condensation |
|
Electromagnetic compatibility |
According to EN 61326 and NAMUR NE21 |
|
Structural design |
|
|
Weight |
42 g (0.093 lbs) |
|
Dimensions |
See dimensional drawing |
|
Material |
316L stainless steel |
|
Degree of protection according to IEC 60529 |
|
|
IP67 |
|
Software requirements for SIPROM T |
|
|
PC operating system |
Windows 10, 7, ME, 2000 and XP; also Windows 95, 98 and 98SE, but only in connection with RS 232 modem |
