SITRANS P300
Digital Pressure Transmitter for Food, Pharma & Hygienic Applications

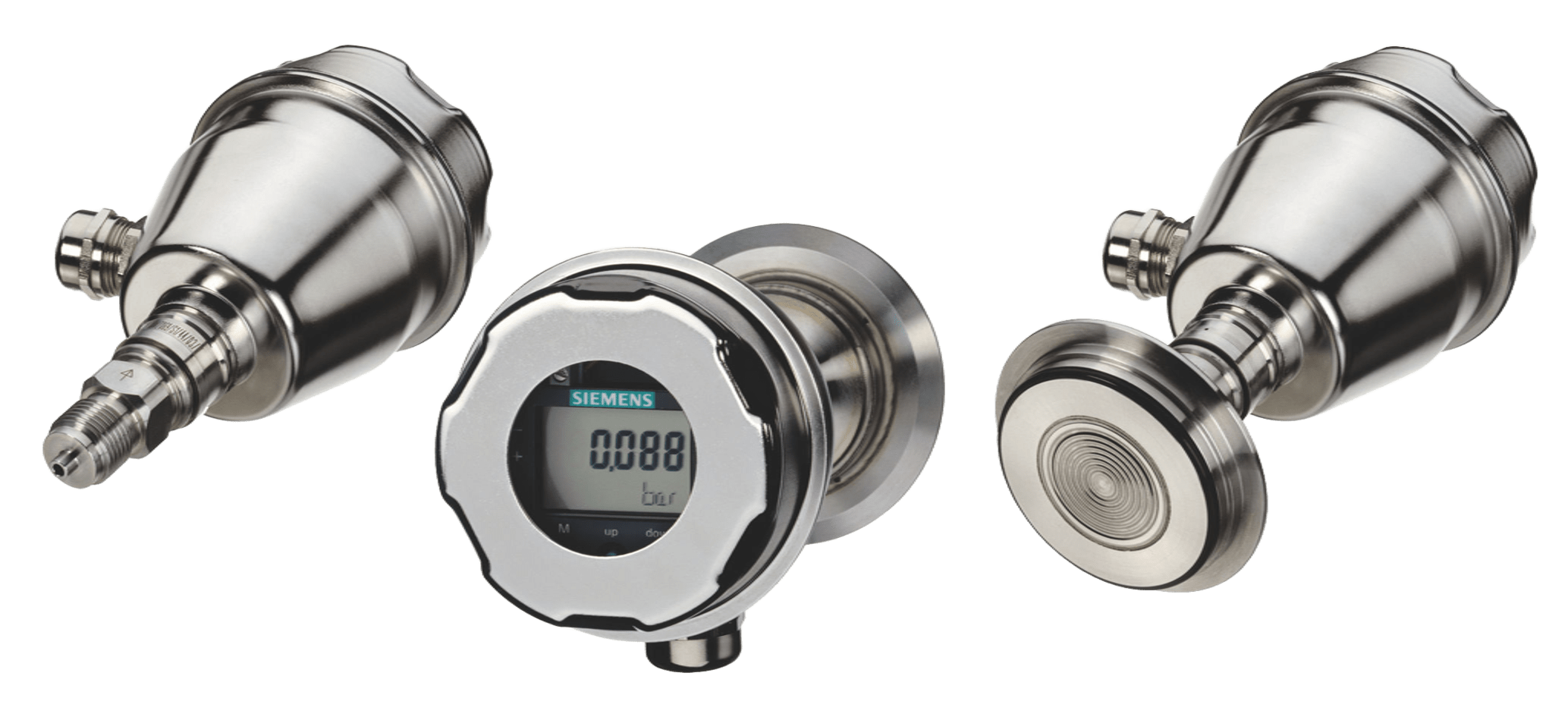

Siemens SITRANS P300
Product Summary
The SITRANS P300 offers exceptional measuring precision and ruggedness. Designed with a high-grade stainless steel housing and laser-printed nameplate, it integrates seamlessly with a wide range of hygienic process connections.
This makes the SITRANS P300 highly suitable for critical applications in the food & beverage industry, biotech, and pharmaceutical production processes requiring maximum cleanliness and process safety.
Key Benefits
Designed for high reliability, hygienic process stability, and safety
Hygienic Industry Standards
Comes with EHEDG, 3A, material, and calibration certificates, eminently suited for food & beverage and pharmaceutical processes.
CIP / SIP Cleaning Ready
Withstands IP68 / IP69K environments and severe CIP/SIP cleaning, while flush-mounted diaphragm cells enable effortless cleaning and prevent product accumulation, even with highly viscous media.
Versatile Cells & Diagnostics
High-performance measuring cells for gauge and absolute pressure, plus extended built-in simulation and diagnostic functions to optimize process control and maintenance.
Technical Specifications
Key operating specifications for SITRANS P300
| Parameter | Technical Specification |
|---|---|
| Accuracy | < 0.075 % |
| Long-Term Stability | < 0.25 % / 60 months |
| Measuring Range | 0 - 10 bar (0 - 4 inchH2O) to 0 - 400 bar (0 - 5800 psi) |
Download Siemens SITRANS P300 Catalog
Get detailed ordering datasheets, hygienic fitting options, dimension diagrams, and full engineering guidelines.
