SITRANS LH300
Well probe for hydrostatic level measurement in tanks, channels, dams and drinking water systems.
Siemens SITRANS LH300
Product Summary

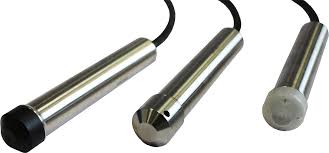

SITRANS LH300 is a well probe for hydrostatic level measurement with protective caps made of PPE, stainless steel or ETFE. The transmitter converts the pressure into a standard 4 – 20 mA signal.
SITRANS LH300 is suitable for tanks, channels and dams, as well as for drinking water systems thanks to the stainless steel housing and piezoresistive sensor with ceramic membrane.
Key Benefits
Compact, durable probe for submerged level measurement
Easy Installation & Use
Compact design and corrosion-resistant material make the probe easy to install and operate.
Safe Application
A vent pipe in the connection cable prevents condensate formation.
Long Service Life
A protective cap shields the measuring diaphragm against external influences.
Technical Specifications
Comprehensive parameters and system integration options
| Parameter | Technical Specification |
|---|---|
| Accuracy | 0.15 % |
| Long-Term Stability | 0.15 % / 12 months |
| Measuring Range | 0 – 1 mH₂O to 0 – 40 mH₂O |
| Housing | 316L Stainless Steel (Ø 29 mm), Housing IP68 rated |
| Diaphragm | Ceramic Al₂O₃ (99.6 %) |
| Cable | PE sheathing; Ø 6 mm with vent pipe |
| Cable Length |
|
| Certificates / Approvals | Explosion-protected version according to IECEx and ATEX |
| Application | Shipbuilding, water / wastewater supply and unpressurised / open tanks and wells |
